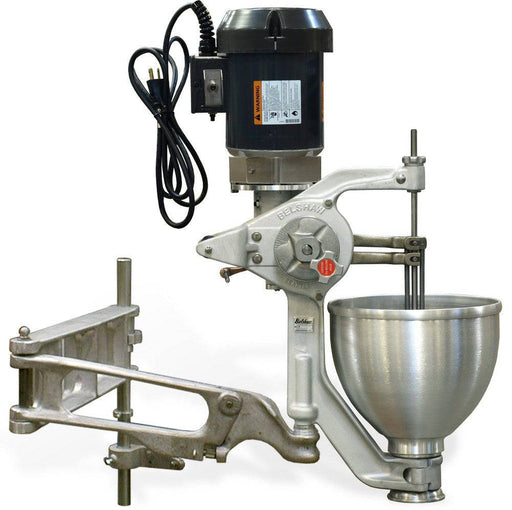

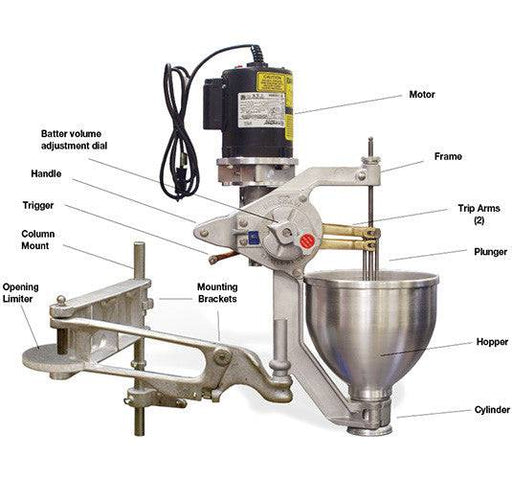

Type F-YRD Belshaw Raised Donut Depositor from Belshaw on Vimeo. Belshaw Adamatic's Type F depositors operate with the same accuracy and smoothness as Type B depositors, but use an electric motor and trigger handle to deposit cake donuts. The faster stroke rate and easier operation of the Type F reduces frying time variability between the first and last deposits, especially with large fryers. The hand trigger is physically easier on the operator than the Type B's rotary crank mechanism, and donuts can be accurately placed in a fryer with little training or practice.   Deposits approximately 115 cake donuts per minute when the trigger is pressed continuously. An adjustment dial allows a wide range of deposit sizesHopper capacity is 15 lbs (7 kg). Choose from the depositor accessories for: Plungers - for ring donuts, sticks, old fashions, crullers, krinkles and more. Cylinders - any plunger used must be matched by a cylinder of the same size. This cylinder is inserted into the bottom of the hopper. One cylinder can be used with several plungers, as long as the plungers are all the same size as the cylinder. Column Mount or Wall Mount - Type F is compatible with most floor-standing fryers using either a column mount attached to the fryer or a secure wall mount. The column mount is more convenient and more common and will fit Belshaw Adamatic fryers and some other brands. Consult with other brand manufacturers to find out how to combine with a Type F. If a column mount is not possible, a well secured wall mount is a good alternative. The Bracket Arm Height Adjuster is another useful option for easier, more convenient height adjustments. (See depositor accessories)

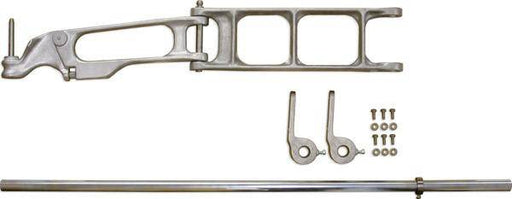

SUPPORTS TYPE B OR F CAKE DONUT DEPOSITORS The column mount attaches directly to your Floor Model Fryer Product Description; The Column Mounting Kit supports Type B or F cake donut depositors. The column is usually mounted on the left side of a Belshaw Adamatic fryer. For mounting on the right, the Bracket Plate can be moved from the left to the right side. Other fryers may accept the Column Mount if suitably strengthened (contact manufacturer) or if they will accept a Bracket Plate kit. Fryer must be bolted to the floor. The full extension of the column mount is 42"/105cm, from the column to the actual donut drop.

Bracket plate kit, used for stability if column mount is added to a Non-Belshaw fryer.

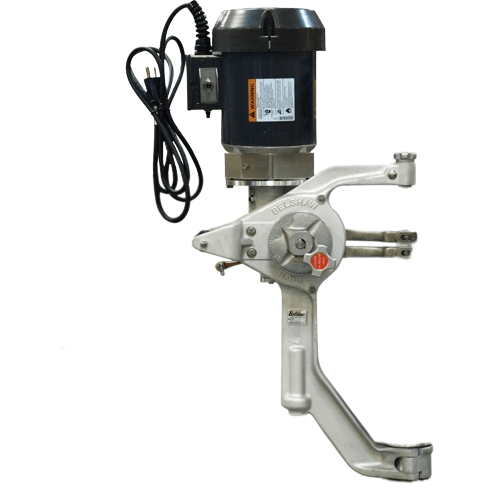

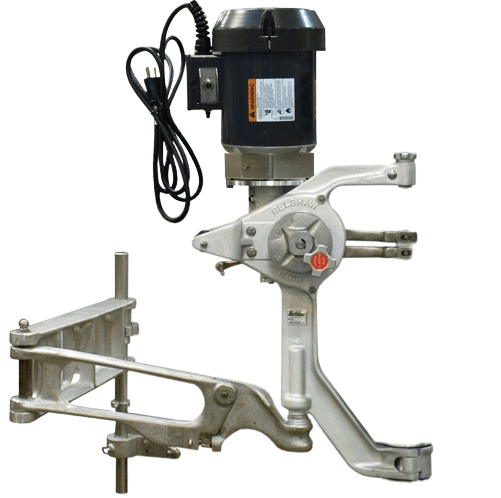

*This Unit Is sold without the hopper Belshaw Adamatic's Type F depositors operate with the same accuracy and smoothness as Type B depositors but use an electric motor and trigger handle to deposit cake donuts. The faster stroke rate and easier operation of the Type F reduces frying time variability between the first and last deposits, especially with large fryers. The hand trigger is physically easier on the operator than the Type B's rotary crank mechanism, and donuts can be accurately placed in a fryer with little training or practice. Deposits approximately 115 cake donuts per minute when the trigger is pressed continuously. An adjustment dial allows a wide range of deposit sizes. Hopper capacity is 15 lbs. (7 kg). Choose from the depositor accessories for: Plungers - for ring donuts, sticks, old fashions, crullers, krinkles and more. Cylinders - any plunger used must be matched by a cylinder of the same size. This cylinder is inserted into the bottom of the hopper. One cylinder can be used with several plungers, as long as the plungers are all the same size as the cylinder. Column Mount or Wall Mount - Type F is compatible with most floor-standing fryers using either a column mount attached to the fryer or a secure wall mount. The column mount is more convenient and more common and will fit Belshaw Adamatic fryers and some other brands. Consult with other brand manufacturers to find out how to combine with a Type F. If a column mount is not possible, a well secured wall mount is a good alternative. The Bracket Arm Height Adjuster is another useful option for easier, more convenient height adjustments. (See depositor accessories)

SUPPORTS TYPE B AND F CAKE DONUT DEPOSITORS ONLY The wall mount attaches securely to a wall behind your Floor Model Fryer of any make fryer Product description : The Wall Mounting Kit supports Type B or F cake donut depositors, with precision screw for adjusting the angle of the depositor. Mounts to the wall behind or alongside fryer. The full extension of the wall mount is 42"/105cm, from the wall fixture to the actual donut drop. Can be used with any make of fryer within its range of extension. The Wall Mounting Kit supports Type B or F cake donut depositors, with precision screw for adjusting the angle of the depositor. Mounts to the wall behind or alongside fryer. The full extension of the wall mount is 42"/105cm, from the wall fixture to the actual donut drop. Can be used with any make of fryer within its range of extension.

Replacement motor for the Belshaw Type F motor (110V).110V motor 0315J-1, Type F Replacement Motor 110V-single phase. * The motor shown in the photo may have accessories attached that you will need to use from your existing Type F motor. We removed the motor from a Type F to provide you the photo and is not a stock photo from the manufacturer.
