SUPPORTS TYPE F-YRD DONUT DEPOSITORS
The wall mount attaches securely to a wall behind your Floor Model Fryer of any make fryer
Product description :
The Wall Mounting Kit supports Type F-YRD donut depositors, with precision screw for adjusting the angle of the depositor. Mounts to the wall behind or alongside fryer. The full extension of the wall mount is 42"/105cm, from the wall fixture to the actual donut drop. Can be used with any make of fryer within its range of extension.
SUPPORTS TYPE B OR F CAKE DONUT DEPOSITORS
The column mount attaches directly to your Floor Model Fryer
Product Description;
The Column Mounting Kit supports Type B or F cake donut depositors.
The column is usually mounted on the left side of a Belshaw Adamatic fryer. For mounting on the right, the Bracket Plate can be moved from the left to the right side.
Other fryers may accept the Column Mount if suitably strengthened (contact manufacturer) or if they will accept a Bracket Plate kit. Fryer must be bolted to the floor.
The full extension of the column mount is 42"/105cm, from the column to the actual donut drop.
Precision Height Adjuster for Type B/ F/ N (column mount only) Belshaw Cake Donut Depositors. This collar provides a more accurate setting of height adjustment thn the supplied set collar that comes in the column mount kit.

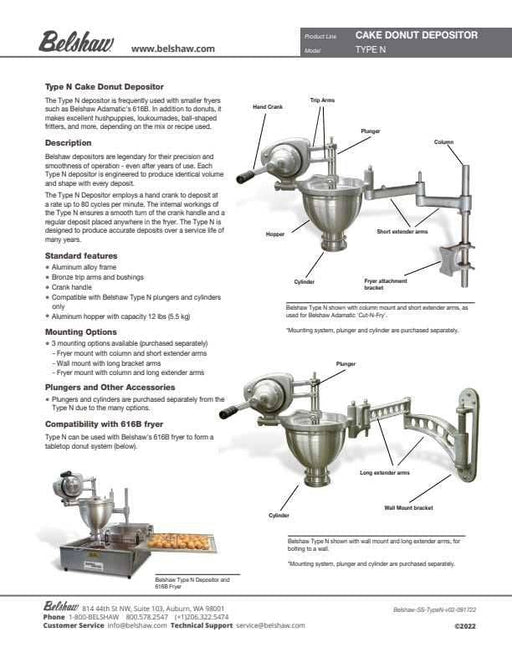

The Type N was designed to work with Belshaw's 616B Cut-N-Fry system. The mounting system is supplied with every Cut-N-Fry - you do not need to make a separate purchase.
For other situations, Type N has 3 mounting systems - either to your existing 616B fryer, or to a wall.
The Short Arm Column Mount attaches the depositor to your 616B fryer, exactly as supplied on our Cut-N-Fry system. To convert your 616B fryer to Cut-N-Fry, choose this kit.
N-1033 Type N Short-Arm Column Mounting Kit for 616B Fryer 22 inches full extension (from the mounting point to the donut deposit, center-to-center)

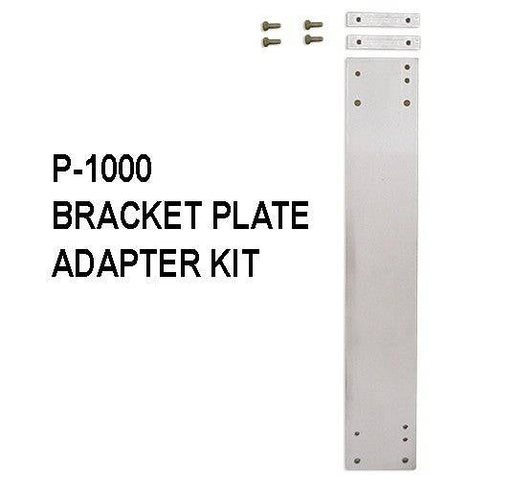

The Long Arm Column Mount attaches the depositor to any suitable fryer. You may need a stiffening plate (Bracket Plate kit P-1000) to hold the mounting kit.
N-1034 Type N Long-Arm Column Mounting Kit for other fryers 32 inches full extension (from the mounting point to the donut deposit, center-to-center)

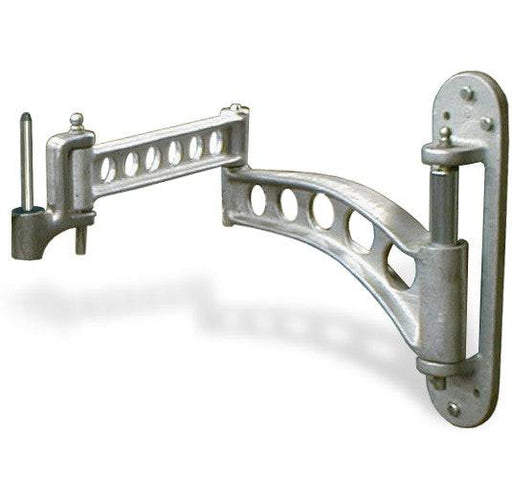

The Wall Mount attaches your depositor to the wall behind your fryer. The installation must be very dependable and secure. If you move the fryer, you must re-install the Wall Mount. It is sometimes a good solution if a Type N depositor is combined with a different fryer.
N-1036 Wall Mounting Kit for Type N 32 inches full extension (from the mounting point to the donut deposit, center-to-center)
A simple Lock Collar is supplied with both Mounting Kits to set your depositor height about 1¼ to 1½" above the shortening (30-40 mm). The optional Precision Height Adjuster is useful for making faster, more accurate height adjustments.
SUPPORTS TYPE B AND F CAKE DONUT DEPOSITORS ONLY
The wall mount attaches securely to a wall behind your Floor Model Fryer of any make fryer
Product description :
The Wall Mounting Kit supports Type B or F cake donut depositors, with precision screw for adjusting the angle of the depositor. Mounts to the wall behind or alongside fryer. The full extension of the wall mount is 42"/105cm, from the wall fixture to the actual donut drop. Can be used with any make of fryer within its range of extension.
The Wall Mounting Kit supports Type B or F cake donut depositors, with precision screw for adjusting the angle of the depositor. Mounts to the wall behind or alongside fryer. The full extension of the wall mount is 42"/105cm, from the wall fixture to the actual donut drop. Can be used with any make of fryer within its range of extension.
