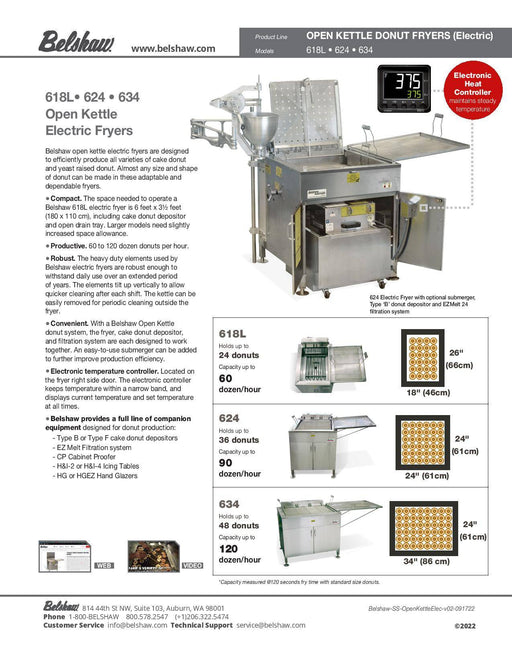

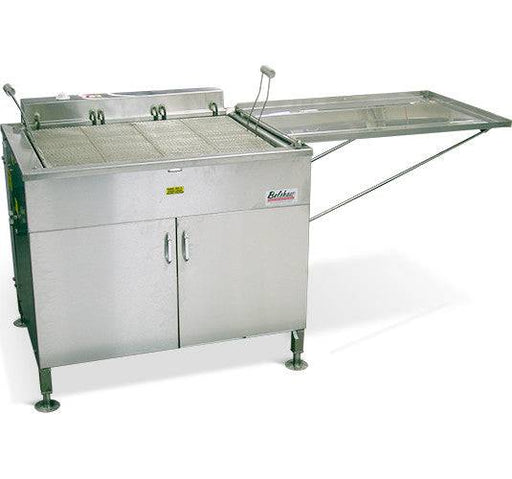

634 DONUT FRYER (ELECTRIC)
Electric heated, frying size 34 x 24 inches (46 x 66 cm).
This industry standard electric donut fryer is used by concessions, donut shops and bakeries all over North America and the world! The fryer holds 35-48 donuts depending on size, and has a production capacity of approximately 100-135 dozen donuts per hour.
Frying size
34 x 24 inches (86 x 61 cm)
Fryer capacity (large donuts)
40 donuts up to 4¼ inch diameter (108 mm)
Fryer capacity (medium donuts)
54 donuts up to 3½ inch diameter (89 mm)
Production capacity (large donuts)
100 dozen/hour @120 seconds frying time
Production capacity (medium donuts)
135 dozen/hour @120 seconds frying time
Shortening capacity
197 lbs | 26.5 gallons (90 kg | 100 L)
Power
208-240 Volts, 3 phase (other voltages available)
Certifications
UL, NSF, CSA, CE
Compatibility
Worldwide
Frying Area 34 x 24 inches (86 x 61 cm).
Shortening capacity 197 lbs. by weight, 26.5 gallons by volume (90 kg/100 liters).
Capacity 35-48 donuts depending on size.
Production rate at full capacity, 90-120 dozen donuts per hour @120 seconds frying time.
208-240 Volts, 50/60Hz, 1-phase or 3-phase (other voltages available).
Heavy duty elements, tiltable upwards for easy kettle cleanup.
Electronic temperature controller for high accuracy, low fluctuation.
High-temperature shut-off switch set to approximately 450° F (230° C).
Stainless steel cabinet, kettle, and drain tray, with sloping surface around fryer kettle.
Adjustable, bolt-down legs.
Drain tray on right side of fryer (can easily be repositioned on left side).
2 high-quality nickel-plated donut frying screens supplied with handles.
Heavy duty drain and valve with exterior handle to empty shortening.
Accommodates EZMelt34 of SF34 Shortening filter underneath fryer.
Accommodates Type B or Type F cake donut depositor.
(Optional) Submerger screen #634-1521, recommended for ball shaped donuts and all products that need full frying coverage.
ETL certified to UL-197, CSA C22.2 and NSF-4.
CE models available for European Union and other countries
See PDF tab for more specifications.
See below for optional accessories for your donut fryer.
A ventilation and fire suppression hood are normally required for indoor locations.

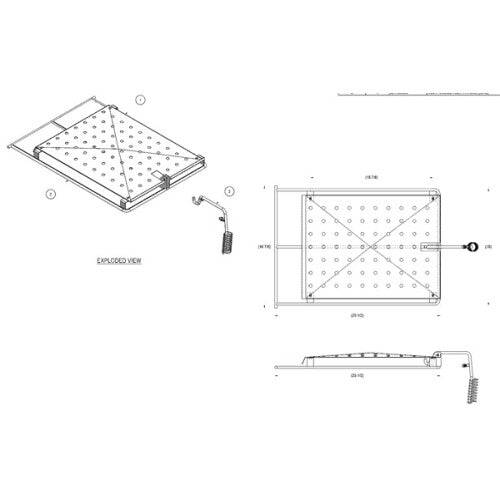

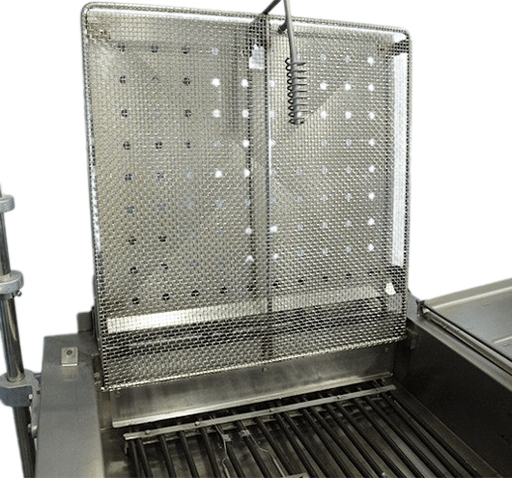

SUBMERGER SCREEN FOR ELECTRIC FRYERS
Submerges products below the shortening. Available in 3 sizes.
Available in 3 sizes to fit Belshaw Open Kettle fryers 618L, 624 and 634. It holds any fried product below the shortening. It is hinged to the back of the fryer and swings down to submerge any product. When not in use, it stays securely in a vertical position.
Use the submerger for any products that need to fry completely under the shortening, either part time or full time. These include ball shaped donuts, loukoumades, and hushpuppies. The Submerger Screen is optional with new fryers.
Part #618L-1521 Submerger screen for 618L Fryer, 17 x 25 inches
Part #624-1521 Submerger screen for 624 Fryer, 23 x 23 inches
Part #634-1530 Submerger screen for 634 Fryer, 33 x23 inches
718LFG Donut Fryer (Natural Gas, Standing Pilot, No Power) GAS-HEATED, FRYING AREA 18 X 26 INCHES (46 X 66 CM)
This industry-standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 24 standard-size cake or yeast-raised donuts and has a capacity of approximately 60 dozen donuts/hour. 718LFG model does not require an electrical connection. This fryer is great with its stainless-steel structure for long-lasting durability, great heat accuracy, and Flexibility with all the accessories that can be used with this unit.
Gas heated at 44,000 BTU/hr.
Shortening capacity 96 lbs. by weight, 13 gallons by volume (44 kg/49 liters)
Capacity 24 standard donuts, approximately 65-80 dozen donuts per hour
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
Generally suitable for Hushpuppies, Loukoumades, Funnel cakes, Elephant ears, Paczkis, Porogis, Fritters, and fried goods of all kinds
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
Standing pilot ignition and thermocouple temperature control, no electricity required.
A ventilation and fire suppression hood is usually required for indoor locations.
This model only operates under 3,000ft. sea level.
Gas-heated, Frying Area 34 x 24 inches (86 x 61 cm)
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 48 standard size cake or yeast-raised donuts and has a capacity of approximately 120-150 dozen donuts/hour. The standard 734CG model uses an electrical source for electronic ignition. 734FG model does not require an electrical connection.
Frying Area 34 inches side-to-side, 24 inches front-to-back (86 x 61 cm)
Gas heated at 89,000 BTU/hr
Shortening capacity 215 lbs by weight, 29 gallons by volume (98 kg/110 liters)
Capacity 48 standard donuts, approximately 120-150 dozen donuts per hour
Liquid Propane
120 Volts , 50/60Hz, 1-phase.
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
(Optional) Standing pilot ignition and thermocouple temperature control no electricity required. This models is designated: 734FG
A ventilation and fire suppression hood is usually required for indoor locations.

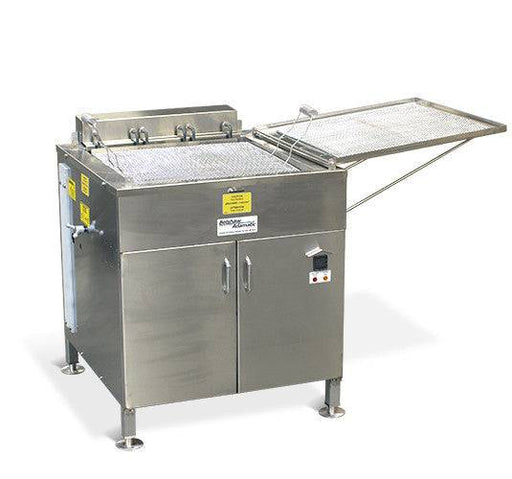

ELECTRIC-HEATED, FRYING AREA 24 X 24 INCHES (61 X 61 CM)
This industry standard electric donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 36 standard size cake or yeast-raised donuts and has a capacity of approximately 80-100 dozen donuts/hour.
Frying Area 24 x 24 inches (61 x 61 cm)
Shortening capacity 96 lbs by weight, 13 gallons by volume 44 kg/49 liters)
Capacity 36 standard donuts, approximately 80-100 dozen donuts per hour
208-240 Volts, 50/60Hz, 1-phase or 3-phase (specify when ordering)
Drain tray on right side of fryer (can be moved to left)
Heavy duty elements, tiltable upwards for easy kettle cleanup
Thermostat controlled heat2 cake donut frying screens
Heavy duty drain and valve with exterior handle to empty shortening
ETL certified to UL-197, CSA C22.2 and NSF-4
A ventilation and fire suppression hood is usually required for indoor locations.
SUBMERGER SCREEN FOR GAS FRYERS
Submerges products below the shortening. Available in 3 sizes.
Available in 3 sizes to fit Belshaw Open Kettle fryers 718L, 724 and 734 (CG and FG models). It holds any fried product below the shortening. It is hinged to the back of the fryer and swings down to submerge any product. When not in use, it stays securely in a vertical position.
Use the submerger for any products that need to fry completely under the shortening, either part time or full time. These include ball shaped donuts, loukoumades, and hushpuppies. The Submerger Screen is optional with new fryers.
The photo is of the 718 Submerge Screen, the other 2 sizes will be shaped proportionate to the size of fryer the submerger is being ordered for.
Part #718LG-1541 Submerger screen for 718LCG, 718LFG, 17 x 25 inches
Part #724G-1547 Submerger screen for 724CG, 724FG, 23 x 23 inches
Part #734G-1536 Submerger screen for 734CG, 734FG, 33 x 23 inches
724CG-724FG DONUT FRYER (GAS)
Gas heated, frying size 24 x24 inches (61 x 61 cm).
Belshaw open kettle fryers are the top choice for convenience, flexibility, heat accuracy and long service life. 724 model fryers hold 25 large or 36 medium-size donuts. For that reason you should choose carefully between the 724 and 718L Fryer. The 724 is particularly useful for medium size donuts up to 3¾ inches in diameter (95 mm), because it holds 3 dozen donuts, compared to 2 dozen for the 718L fryer. The screens used will be different, and so will any baking racks. You'll need 23 x 23 inch screens for this fryer, and baking racks to hold them. Each fryer comes with two screens with handles.
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 36 standard size cake or yeast-raised donuts and has a capacity of approximately 80-100 dozen donuts/hour. The standard 724CG model uses an electrical source for electronic ignition. 724FG model does not require an electrical connection.
Frying Area 24 x 24 inches (61 x 61 cm)
Gas heated at 60,000 BTU/hr
Shortening capacity 119 lbs by weight, 16 gallons by volume (54 kg/61 liters)
Capacity 36 standard donuts, approximately 80-100 dozen donuts per hour
A conversion kit is available if changeover is needed
120 Volts or 240 Volts, 50/60Hz, 1-phase. (specify when ordering)
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
(Optional) Standing pilot ignition and thermocouple temperature control with no electricity required. This models is designated: 724FG
A ventilation and fire suppression hood is usually required for indoor locations.
This model operates under 3,000ft above sea level

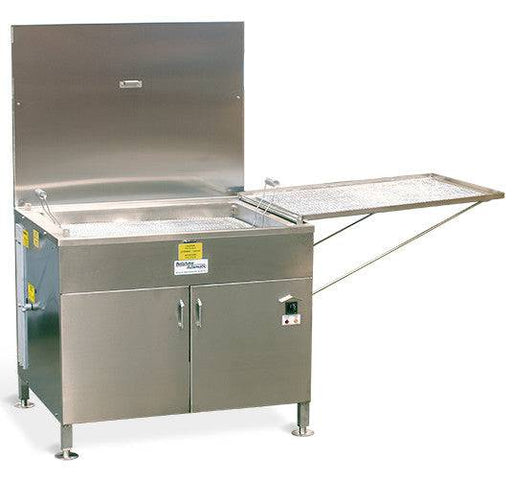

Gas-heated, Frying Area 34 x 24 inches (86 x 61 cm)
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 48 standard size cake or yeast-raised donuts and has a capacity of approximately 120-150 dozen donuts/hour. The standard 734CG model uses an electrical source for electronic ignition. 734FG model does not require an electrical connection.
Frying Area 34 inches side-to-side, 24 inches front-to-back (86 x 61 cm)
Gas heated at 89,000 BTU/hr
Shortening capacity 215 lbs by weight, 29 gallons by volume (98 kg/110 liters)
Capacity 48 standard donuts, approximately 120-150 dozen donuts per hour
Natural Gas or Liquid Propane (specify when ordering). A conversion kit is available if changeover is needed
120 Volts, 50/60Hz, 1-phase.
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
(Optional) Standing pilot ignition and thermocouple temperature control“ no electricity required. This models is designated: 734FG
A ventilation and fire suppression hood is usually required for indoor locations.

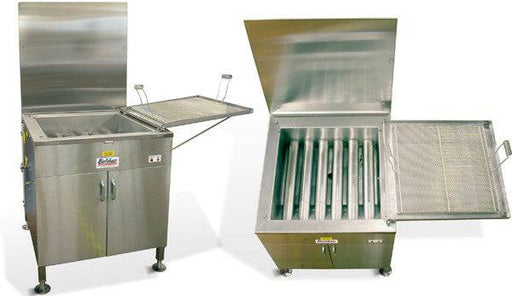

Gas-heated, Frying Area 24 x24 inches (61 x 61 cm)
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 36 standard size cake or yeast-raised donuts and has a capacity of approximately 80-100 dozen donuts/hour. The standard 724CG model uses an electrical source for electronic ignition. 724FG model does not require an electrical connection.
Frying Area 24 x 24 inches (61 x 61 cm)
Gas heated at 60,000 BTU/hr
Shortening capacity 119 lbs by weight, 16 gallons by volume (54 kg/61 liters)
Capacity 36 standard donuts, approximately 80-100 dozen donuts per hour
Liquid Propane
120 Volts , 50/60Hz, 1-phase.
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
(Optional) Standing pilot ignition and thermocouple temperature control with no electricity required. This models is designated: 724FG
A ventilation and fire suppression hood is usually required for indoor locations.
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 36 standard size cake or yeast-raised donuts and has a capacity of approximately 80-100 dozen donuts/hour. The standard 724CG model uses an electrical source for electronic ignition. 724FG model does not require an electrical connection.
Open Kettle Gas Fryer, frying area 24†x 24†(61cm x 61cm)
60,000 BTU with 'Omron' temperature controller
Shortening capacity 119lbs (54kg), approx 16 gallons
Holds 36 standard donuts
Capacity approx 80-120 dozen donuts per hour
Drain tray and cover opens on right side (field reversible)
2 screens w/handles
Drain valve with exterior handle
ETL listed to NSF4 - ANSI Z83 - CSA1.8a
724CG-724FG DONUT FRYER (GAS)
Gas heated, frying size 24 x24 inches (61 x 61 cm).
Belshaw open kettle fryers are the top choice for convenience, flexibility, heat accuracy and long service life. 724 model fryers hold 25 large or 36 medium-size donuts. For that reason you should choose carefully between the 724 and 718 Fryer. The 724 is particularly useful for medium size donuts up to 3¾ inches in diameter (95 mm), because it holds 3 dozen donuts, compared to 2 dozen for the 718L fryer. The screens used will be different, and so will any baking racks. You'll need 23 x 23-inch screens for this fryer, and baking racks to hold them. Each fryer comes with two screens with handles.
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 36 standard size cake or yeast-raised donuts and has a capacity of approximately 80-100 dozen donuts/hour. The standard 724CG model uses an electrical source for electronic ignition. 724FG model does not require an electrical connection.
Frying Area 24 x 24 inches (61 x 61 cm)
Gas heated at 60,000 BTU/hr
Shortening capacity 119 lbs by weight, 16 gallons by volume (54 kg/61 liters)
Capacity 36 standard donuts, approximately 80-100 dozen donuts per hour
120 Volts or 240 Volts, 50/60Hz, 1-phase. (specify when ordering)
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
A ventilation and fire suppression hood is usually required for indoor locations.
This model operates under 3,000ft above sea level

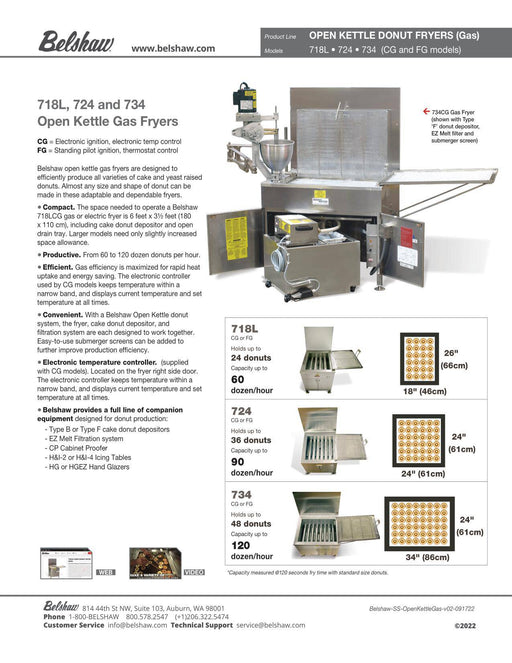

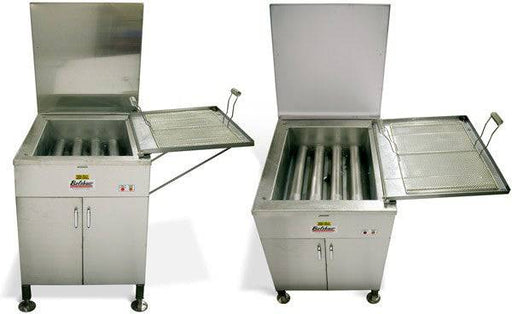

718LFG Donut Fryer (Propane, Standing Pilot, No Power) GAS-HEATED, FRYING AREA 18 X 26 INCHES (46 X 66 CM)
This industry-standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 24 standard-size cake or yeast-raised donuts and has a capacity of approximately 60 dozen donuts/hour. 718LFG model does not require an electrical connection. This fryer is great with its stainless-steel structure for long-lasting durability, great heat accuracy, and Flexibility with all the accessories that can be used with this unit.
Gas heated at 44,000 BTU/hr.
Shortening capacity 96 lbs. by weight, 13 gallons by volume (44 kg/49 liters)
Capacity 24 standard donuts, approximately 65-80 dozen donuts per hour
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
Generally suitable for Hushpuppies, Loukoumades, Funnel cakes, Elephant ears, Paczkis, Porogis, Fritters, and fried goods of all kinds
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
Standing pilot ignition and thermocouple temperature control, no electricity required.
A ventilation and fire suppression hood is usually required for indoor locations.
This model only operates under 3,000ft. sea level.
Disclaimer
*Accessories sold separately
*This item is not stocked in our warehouse stock and transit time may vary, if you need your items by a certain date please contact us prior to placing your order. Shipping may vary.
* 1-year parts and labor cost limited warranty see (attached media)

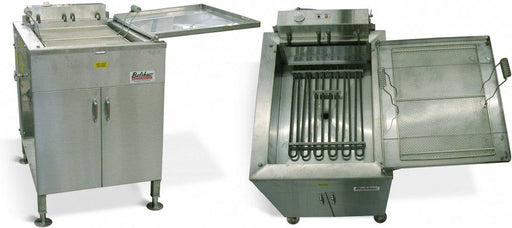

ELECTRIC-HEATED, FRYING AREA 18 X 26 INCHES (46 X 66 CM)
This industry standard electric donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 24 standard size cake or yeast-raised donuts and has a capacity of approximately 65-80 dozen donuts/hour.
Frying Area 18 inches side-to-side x 26 inches front-to-back (46 x 66 cm)
Shortening capacity 82 lbs by weight, 11 gallons by volume (42 kg/61 liters)
Capacity 24 standard donuts, approximately 65-80 dozen donuts per hour
208-240 Volts, 50/60Hz, 1-phase or 3-phase (specify when ordering)
Drain tray on right side of fryer (can be moved to left)
Heavy duty elements, tiltable upwards for easy kettle cleanup
Thermostat controlled heat
2 cake donut frying screens
Heavy duty drain and valve with exterior handle to empty shortening
ETL certified to UL-197, CSA C22.2 and NSF-4
A ventilation and fire suppression hood is usually required for indoor locations.
For donut purposes please consider the submerger option
DRAFT INDUCER KIT FOR GAS FRYERS
For Propane heated fryers, and Natural Gas above 3,000 feet. Available in 3 sizes and Voltages.
The draft inducer ensures that gas combustion exhaust is vented through the exhaust flue at the back of your fryer so that air quality is not compromised. It's recommended for all 718L, 724 and 734 gas open kettle fryers that are heated with Propane, and for Natural Gas heated fryers located 3,000 feet ( 915 meters) or more in altitude. The Draft Inducer is pre-installed for new equipment, or can be added by a technician.

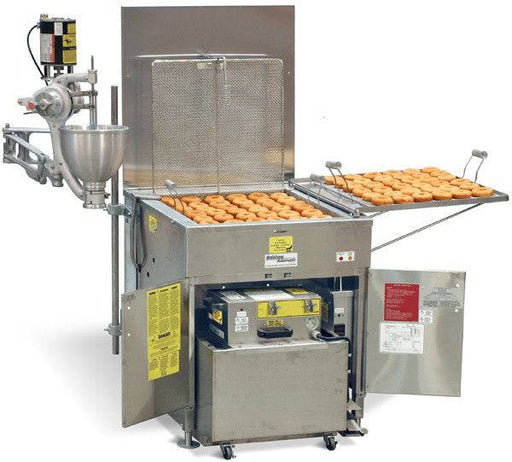

718LCG Donut Fryer (Propane, Electronic Controller) gas-heated, frying area 18 X 26 inches (46 X 66 cm)
This industry standard donut fryer is used by donut shops and bakeries all over North America and the world! The fryer holds 24 standard size cake or yeast-raised donuts and has a capacity of approximately 65-80 dozen donuts/hour. The standard 718LCG model uses an electrical source for electronic ignition.
Frying Area 18 inches side-to-side, 26 inches front-to-back (46 x 66 cm)
Gas heated at 44,000 BTU/hr
Shortening capacity 96 lbs by weight, 13 gallons by volume (44 kg/49 liters)
Capacity 24 standard donuts, approximately 65-80 dozen donuts per hour
120 Volts, 50Hz, 1-phase
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
Generally suitable for Hushpuppies, Loukoumades, Funnel cakes, Elephant ears, Paczkis, Porogis, Fritters, and fried goods of all kinds
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
Standing pilot ignition and thermocouple temperature control no electricity required.
A ventilation and fire suppression hood is usually required for indoor locations.
This model operates under 3,000ft above sea level
718LCG Donut Fryer (Natural Gas, Electronic Controller)
Natural Gas heated, frying size 18 x 26 inches (46 x 66 cm).
Whether you're making glazed ring donuts or your own gourmet creation, Belshaw open kettle fryers are the top choice for convenience, flexibility, heat accuracy and long service life. The 718L fryer comfortably holds 24 donuts and has a production capacity of approximately 60 dozen donuts per hour. The CG model requires an electrical source for electronic ignition and includes an electronic heat controller to keep frying temperature right on target. The FG model runs without electricity, using a thermostat and standing pilot ignition. This fryer uses standard size screens and easy-to-find standard baking racks - perfect for a full variety of cake and yeast-raised donuts! Each fryer comes with two 17 x 25 inch screens with handles.
Gas heated at 44,000 BTU/hr
Shortening capacity 96 lbs by weight, 13 gallons by volume (44 kg/49 liters)
Capacity 24 standard donuts, approximately 65-80 dozen donuts per hour
Natural Gas or Liquid Propane (specify when ordering). A conversion kit is available if changeover is needed
120 Volts, 50/60Hz, 1-phase. (specify when ordering)
Digital electronic thermostat control
Drain tray on right side of fryer. Can be moved to left side
Drain and valve with exterior handle to empty shortening
2 cake donut frying screens with handles
Generally suitable for Hushpuppies, Loukoumades, Funnel cakes, Elephant ears, Paczkis, Porogis, Fritters, and fried goods of all kinds
ETL certified to NSF-4, ANSI Z83.11a and CSA1.8a.2004
Standing pilot ignition and thermocouple temperature control no electricity required.
A ventilation and fire suppression hood is usually required for indoor locations.
This model operates under 3,000ft above sea level
THE MOST COMPACT, EASY-TO-USE FRYER, 16 X 16 INCHES (41 X 41 CM)
Compact easy-to-use donut fryer that will serve you for years and years - for all kinds of Donuts, Greek Loukoumades, Hushpuppies, and more
Belshaw Adamatic 616B is a 16" x 16" donut fryer that occupies under 3 square feet (1 sq. m) of counter space and weighs only 44lbs. (20kg) empty.
With a capacity of 16 average size donuts and approx. 35 dozen/hour, it offers the best possible use of space for the amount that it produces. It is also easy to move around if you change location regularly.
Product Details
Frying size: 16 x 16 inches (41x 41 cm)
Capacity: 16 standard donuts
Max Production: 40 dozen/hour @ 120 seconds frying time
Heat: 208v or 240v
The 616B can be used for cake or yeast-raised donuts. For yeast-raised donuts, you may need 10 or more screens for cake donuts, you can use a handheld donut depositor such as Belshaw Adamatic Type K Donut Depositor
Supplied with a cover that doubles as a drain tray
Supplied with two 616-0512 Frying Screens with handles.
Suitable for Donuts, Hushpuppies, Loukoumades, Fritters, and many other fried products
The 616B is also used as a component in Belshaw Adamatic Cut-N-Fry system
Supplied with a cover that doubles as a convenient, sturdy drain tray.
Supplied with two Frying Screens with handles.
Shortening capacity 33 lbs by weight, 4.5 gallons by volume (15 kg/17 liters).
Capacity 16 standard donuts.
Stainless steel cabinet, kettle, and drain tray.
Thermostat temperature control.
Disclaimer
*For cake donuts, you can use a handheld donut depositor such as Belshaw's Type K Donut Depositor (for ring donuts only).
For more cake donuts, it is recommend to use Cut-N-Fry which includes our versatile Type N hand-crank depositor.
* For yeast-raised donuts, you may need 20 or more screens.
*This item is not stocked in our warehouse stock and transit time may vary, if you need your items by a certain date please contact us prior to placing your order. Shipping may vary.
* 1-year parts and labor cost limited warranty see (attached media)
