Design

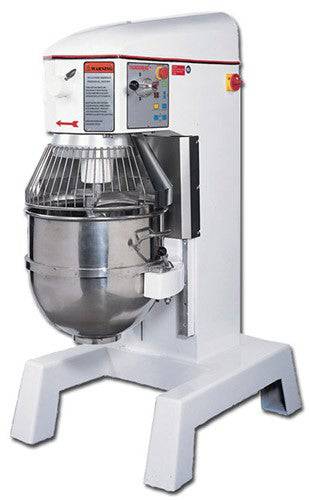

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

• 60-quart capacity
• 1-99 minute timer for continuous or timed operation
• Powerful 4 Hp motor
• 220v/60/3 & 50amps
• 6-Speed (3 speed gear box with two speed motor)
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Moisture resistant switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

Standard Accessories

• 60-quart s/steel bowl　
• Flat batter beater
• Spiral dough hook
• Wire whip
• Safety bowl Guard
• Attachment hub

Specifications

Motor:

• 6-speed (3 speed gear box with 2 speed motor)
• 4Hp continuous
• 50 amps

Electrical:

• 220/60/3 or 220/60/1
• 440v/60/3 or 440v/50/3

Speed Range:

• Beater: 18-100
• Hub: 38-228

Weight:

• Net: 1018lbs (462kg)
• Ship: 1180lbs (536kg)

Dimensions:

• Width: 32'' (813mm)
• Depth: 43.8'' (1113mm)
• Height: 61.8'' (1569mm)

Shipping:

• Width: 33.8'' (858mm)
• Depth: 47'' (1193mm)
• Height: 71.8'' (1828mm)
