Avalon ARF20 E (Electric Fryer) Oil/Shortening Filter 115V

Avalon ARF20 E (Electric Fryer) Oil/Shortening Filter 115V
Save 8% Save 8%
$4,424.08
$4,424.08 - $4,424.08
$4,424.08
$4,058.80
$4,058.80 - $4,058.80
$4,058.80

Avalon ARF20 E (Electric Fryer) Oil/Shortening Filter 115V

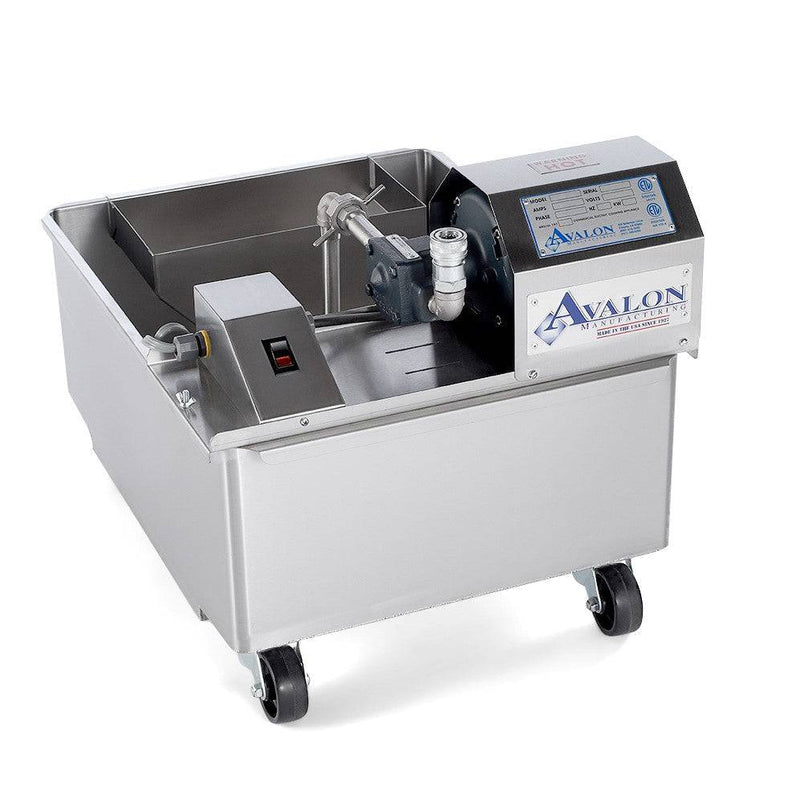

The Avalon Oil and Shortening filter will help increase the life and quality of your shortening and oil, lose less oil by filtering microscopic particles with this unit, a must-have for your store to save money on your oil and shortening. This unit is easy to move and store with its 4 swivel castors and with its size is made for your Avalon 20" x 20" Electric fryers. The Avalon Shortening Filter is made of Stainless-Steel construction and equipped with a Sediment Catch Basket, Quick Disconnect Filter Hose with Coil Handle, Thermo-guard Motor with on/off switch, and Stainless-Steel Motor/Pump cover. All parts are easily removed without tools for easy cleaning.

Shortening life and quality of your oil are extended with the Avalon Manufacturing ARF20-E oil / shortening filter. The unit is easy-to-use and easy-to-store. The filter removes crumbs and sediment from your oil that will cause flavor transfer and a quick breakdown of the shortening.

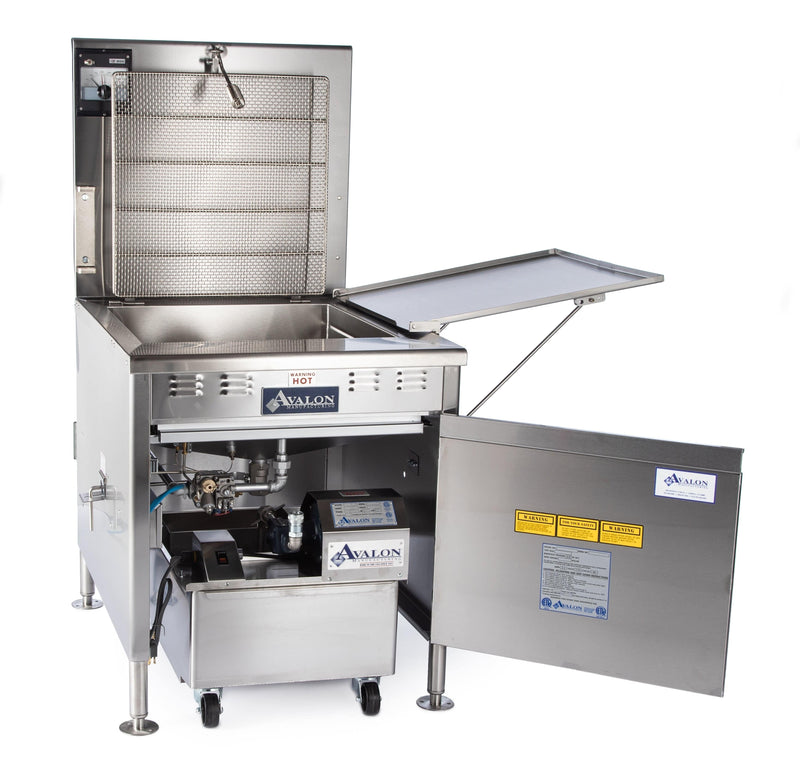

The filter area has an oil capacity of 110 lbs. with a lower profile design that fits underneath the Avalon 20" x 20" Electric fryers effortlessly. Placing this portable filter machine under your fryer drain, allows the used oil to flow through the included sediment catching basket. As the oil flows through the sediment basket, large debris or food scraps are caught. As the oil drains, it will collect on top of the stainless-steel filter screen in the filter pan. From there, turn on the pump, and the oil will go through the high temperature food grade oil hose and run through your fryer a few times. Finally, close your fryer drain and refill the fryer with clean oil.
This unit's stainless-steel construction provides long-lasting use, and the stainless-steel fittings are easy to remove for cleaning. Plus, the controls are easy-to-use, and simply require the flip of a switch. Other features include a thermo-guard motor and four swivel casters.

FOR USE WITH 20" x 20" Electric FRYERS

About Avalon

Since 1927 Avalon has been a premier U.S. manufacturer of quality donut and bakery equipment. The company is family-owned and operated with a mission to be the preferred global supplier and the highest quality, value-based equipment in the donut equipment sector.

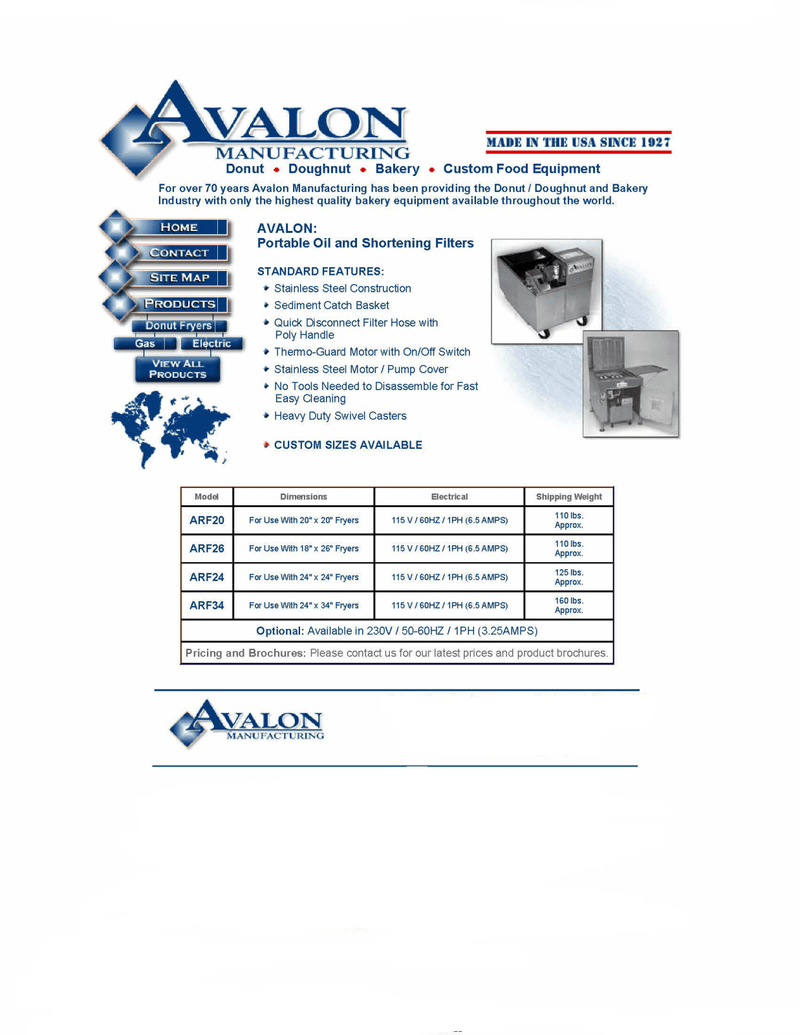

  • Product Features

    •  Stainless Steel Tank
    •  Thermo-Guard Motor
    •  High Temp Filter Hose with Coil Handle and Quick Disconnect
    •  Sediment Catch Basket
    •  Stainless Steel Filter Screen
    •  Easy to use controls
    •  Stainless Steel fittings easy to remove for cleaning
    • Description: FOR USE WITH 20" x 20" FRYERS
    • Electrical: 115 V/ 50-60 HZ/1 PH- 6.5 AMPS (Optional 230 Volt)
    • Dimensions ARF20 E: 16"W X 27"L X 13"H (Motor Height 20")
    • Dimensions ARF20 G: 16"W X 33"L X 12"H (Motor Height 19")
    • Apr Shipping Weight: 110 LBS.
    • Dimensions ARF20 E: 16"W X 27"L X 13" H (Motor Height 20")

Disclaimer

*FOR USE WITH 20" x 20" Electric FRYERS

*This item is not stocked in our warehouse stock and transit time may vary, if you need your items by a certain date please contact us prior to placing your order. Shipping may vary.

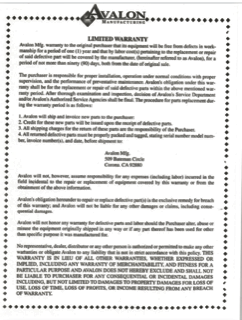

* 1-year parts and labor cost limited warranty
