Belshaw Type N Depositor with Hopper

by Belshaw
Original price $3,200.00 - Original price $4,500.00
Original price
$3,200.00 - $4,500.00
Current price $3,200.00

Hand-crank depositor for 616B Fryer and Cut-N-Fry

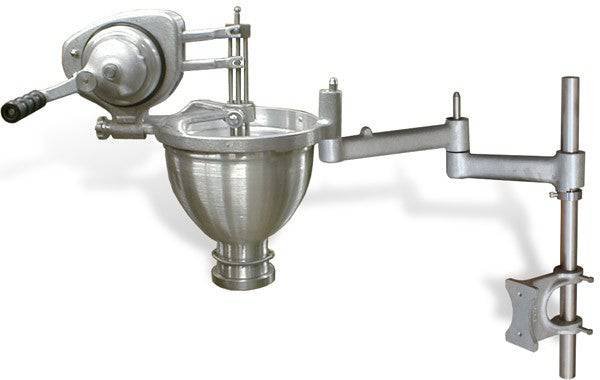

*- Shown with Mounting Kits For Photos of Depositor and Hopper,

Belshaw Adamatic Type N is a rotary crank donut depositor. Type N is designed for Belshaw Cut-N-Fry for Donuts / Hushpuppies / Loukoumades, although it can be used with other frying systems if the correct mounting system is chosen.

  • The hopper holds approximately 12lbs (5.5kg) of batter.
  • 3 mounting systems are available
    • Column mount with short arms - this is the mount designed for Belshaw Adamatic 616B fryer. (The combination is called a Cut-N-Fry system).
    • Column mount with long arms - used when 2 616B fryers are used side by side. A single Type N can be used for both fryers.
    • Wall mount with long arms - used with any fryer other than Belshaw Adamatic 616B.

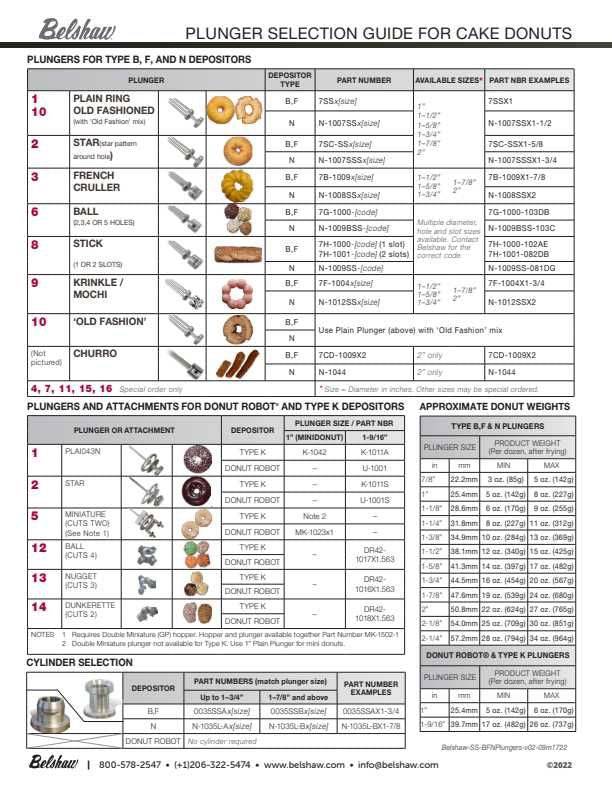

  • Cylinder and plungers are ordered separately for cake donuts, Loukoumades and hushpuppies. See accessories for details.
