Belshaw Type N mounting systems
The Type N was designed to work with Belshaw's 616B Cut-N-Fry system. The mounting system is supplied with every Cut-N-Fry - you do not need to make a separate purchase.
For other situations, Type N has 3 mounting systems - either to your existing 616B fryer, or to a wall.

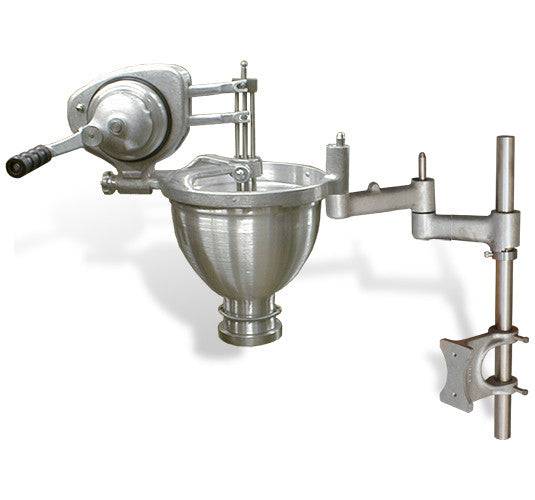

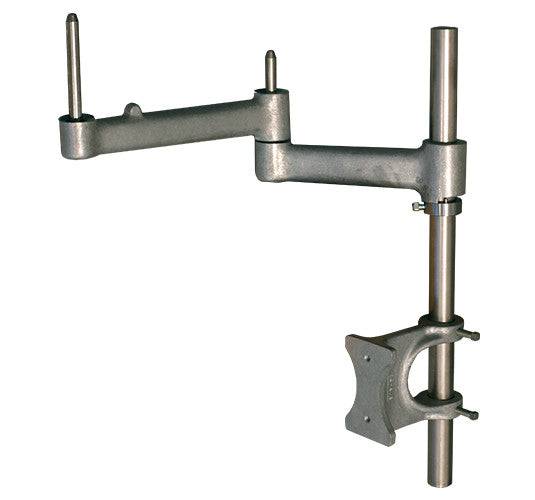

The Short Arm Column Mount attaches the depositor to your 616B fryer, exactly as supplied on our Cut-N-Fry system. To convert your 616B fryer to Cut-N-Fry, choose this kit.
N-1033 Type N Short-Arm Column Mounting Kit for 616B Fryer 22 inches full extension (from the mounting point to the donut deposit, center-to-center)

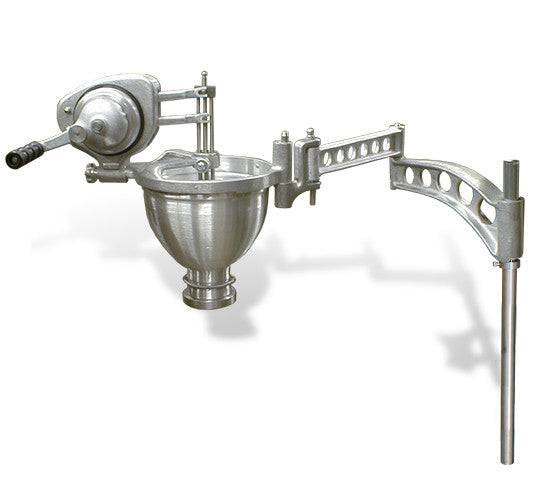

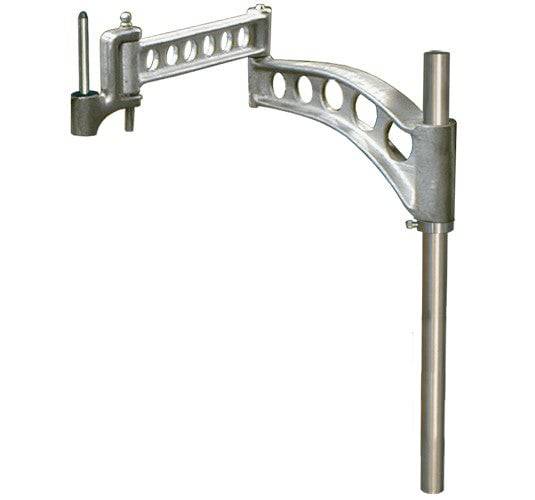

The Long Arm Column Mount attaches the depositor to any suitable fryer. You may need a stiffening plate (Bracket Plate kit P-1000) to hold the mounting kit.
N-1034 Type N Long-Arm Column Mounting Kit for other fryers 32 inches full extension (from the mounting point to the donut deposit, center-to-center)

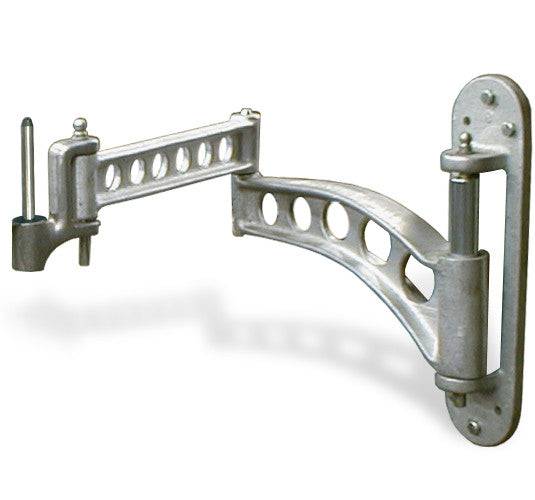

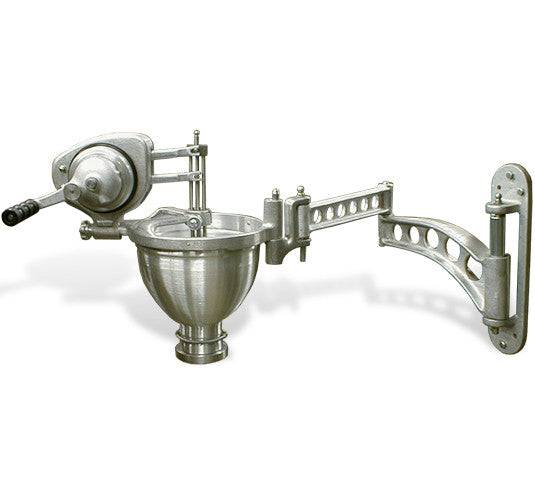

The Wall Mount attaches your depositor to the wall behind your fryer. The installation must be very dependable and secure. If you move the fryer, you must re-install the Wall Mount. It is sometimes a good solution if a Type N depositor is combined with a different fryer.
N-1036 Wall Mounting Kit for Type N 32 inches full extension (from the mounting point to the donut deposit, center-to-center)
A simple Lock Collar is supplied with both Mounting Kits to set your depositor height about 1¼ to 1½" above the shortening (30-40 mm). The optional Precision Height Adjuster is useful for making faster, more accurate height adjustments.
