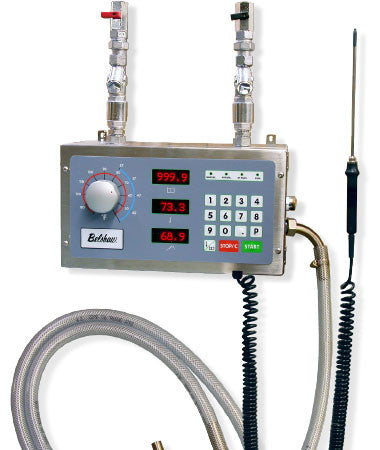

Domix 45A- Water Meter-Mixer 120V/50/60/1 phase
Water Meter-Mixer - DOMIX 45A
DOMIX 45A water meter is a complete option, built to last.
Stainless steel structure, 80 programmable recipes, by-pass outlet and excellent precision to always assure the same quality levels throughout the dosing and mixing phase.
• Microprocessor control
• Proprietary cast mixing valve
• S/S double net filters, in line s/s check valves & s/s inlet ball valve
• S/S housing
• Automatic bypass while water is coming to temperature.
• 8 foot hose with s/s fittings
• Highly accurate external temperature probe
• 80 program memory (with last setting kept over)
• 3 electronic displays
• Water volume remaining
• Discharge temperature
• All displays and programming in either U.S. or metric units
• Remote pump power supply plug
• Accuracy of ±1% For any volume above 1 gal (3.8 L)
• Micro dosage capability – accuracy ±1% any volume above 10 oz (500mL)
• Certified to UL-3121, CSA 22.2
Dimensions
- Dimensions (net) Width 17.5” (445 mm)
- Height (excluding hoses) 20” (508 mm)
- Depth 8” (203 mm)
- Electrical Voltage 15V/60/1
Water Temperature
- Max incoming temperature 150° F (65° C)
- Temperature range at discharge 36–150° F (2–65° C)
- Temperature accuracy +/- 2° F (1° C)
Water Pressure
- Water pressure Minimum incoming water pressure 15 psi (1 bar)
- Maximum incoming water pressure 75 psi (5 bar)
- Water dispensing Maximum dispensed water quantity 999.9 lbs or 999.9 Liters
Water dispensed accuracy
- +/-1% (at volumes 1 gal/4L and up)
- Dispensing rate (at min pressure) 4.75 gallons/min (18 L/min)
- Dispensing rate (at max pressure) 10.5 gallons/min (40 L/min)
Maximum Batch
- Maximum programmable batch 999 lbs
- Number of recipes 80
Shipping Data
- Width 20”
- Height (excluding hoses) 20”
- Depth 10”
- Shipping weight 35 lbs (16 kg)
- Inlet Connection Inlet pipe connection 1/2" NPT
Inlet Connection Inlet pipe connection
- 1/2" NPT
