Edhard Volumetric Dosing System

Save 9% Save 9%
Original price $7,155.78
Original price $5,049.00 - Original price $7,155.78
Original price $7,155.78
Current price $6,505.25
$4,590.00 - $6,505.25
Current price $6,505.25

The purpose of this equipment is to dose semi-liquid products in the following ways:

• Inject a product into another product
• Deposit a product in a container
• Deposit a product on top of another product
• Layer a product on to another product
• Decorate a product with another product

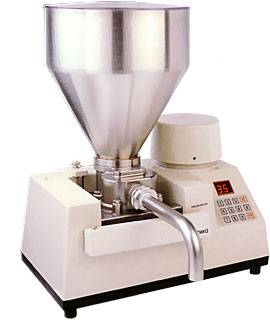

This equipment consists of three main components. This concept applies to all variations of this equipment. The (3) main components are:

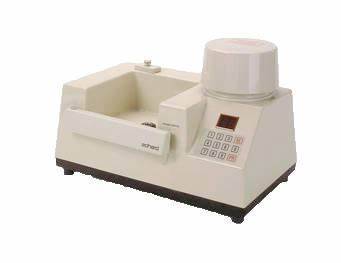

(1) PS Series Power Base- (PS4028)

The PS-Series power base has a 1/8 HP motor and is maintenance free. The exterior is designed so that only a damp cloth is needed to keep it clean.

Advanced capabilities:
•Normal cycling
•Reverse
•Automatic cycling
•Continuous dispensing
•Resolution adjustment

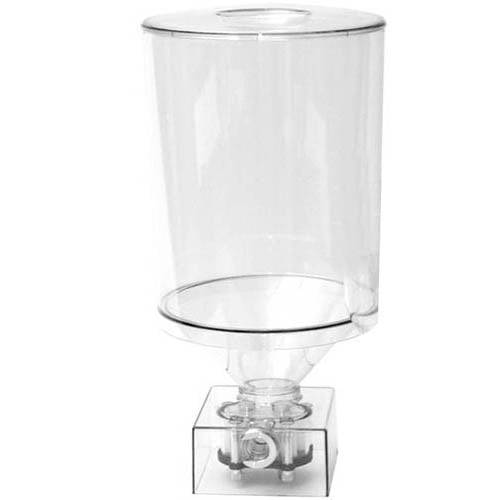

(2) Filler Unit -Lexan- Single Outlet

This series filler unit is molded in clear, FDA approved polycarbonate and is available in single outlet configuration only. The FHP-Series is capable of dispensing liquid and semi-liquid products and is an economical alternative to the FS-Series filler units.

Pump Configuration:
Gear type


Hopper capacity/type:
6 qt. (5.5 l) Lexan - FHP5026      (Call for pricing)
18 qt. (17.1l) Lexan =FHP5025  (1) 18 quart hopper is quoted)

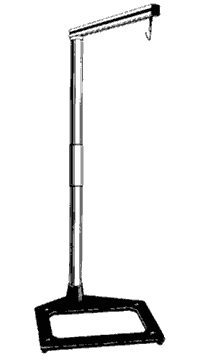

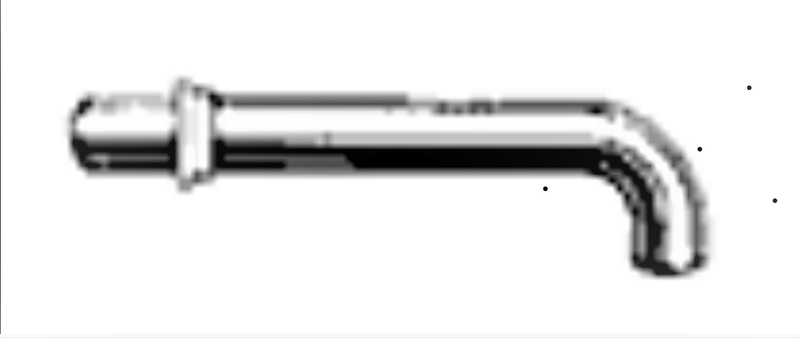

(3)  Fixed 90 degree spout (F-3141) or (FS-3148) Hose Assembly with the Balancer Assembly (PS-3328)

* Quoted with (FS-3148) Hose assembly with balancer assembly and Hose Assembly -
