Thunderbird
Thunderbird Planetary Mixer J Hook for Donut Dough
from $353.70
$406.76
The dough hook attachment that arrives with a Thunderbird mixer is a spiral-shaped metal Bread hook that helps to knead the dough without you having to put in too much effort. Donuts require a different hook to form a light and well proofed dough that has properly formed gluten.
There is a significant difference between a “J” hook and a reverse spiral dough mixing arm. To tell the two apart the “J” hook looks exactly as its name implies while the reverse spiral dough mixing arm has a pronounces twist at the bottom of the hook. This twist forces the dough back down into the bowl while the dough is mixing simulating the folding process bread goes through.
The J hook is designed specifically for donuts, to stretch and knead the dough while the gluten strands are strengthened. This forms a better tasting and lighter donut. We suggest all donuts to be made with the J hook attachment.
Thunderbird
ARM-40-44 Thunderbird 40 Quart Stainless Steel Bowl
$900.00
$1,035.00
Mixer Attachment, 40 qt. stainless steel bowlSub-category - Mixer BowlConstruction - Stainless Steel
Specifications
Manufacturer Thunderbird
Model # TDB-ARM-40-44
Mfg Part # ARM-40-44
Alternate Part Numbers ARM4044
Priced Per Each
Shipping Weight 20.00 pounds
Availability: Manufacturer Ships Direct
Thunderbird

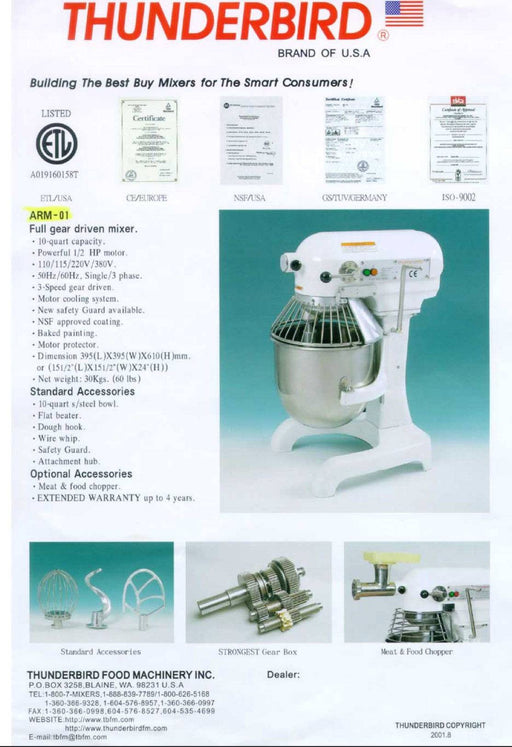

10 Quart Thunderbird Planetary Mixer ARM-01
$1,400.00
$1,610.00
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
10-quart capacity
Powerful ½ HP motor
115v/60/1, 8.5amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#8 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Accessories
10-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
3-speed
1/2HP continuous
8.5 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 40-14
Hub: 97-350
Weight:
Net: 74lbs (34kg)
Ship: 83lbs (38kg)
Dimensions:
Width: 14'' (360mm)
Depth: 18'' (460mm)
Height: 24'' (610mm)
Shipping:
Width: 19'' (485mm)
Depth: 19'' (485mm)
Height: 29'' (740mm)
Thunderbird

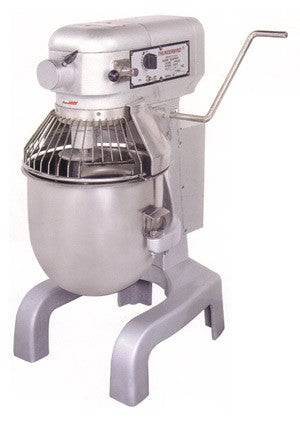

20 Quart Thunderbird Planetary Mixer ARM-02
$2,200.00
$2,530.00
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
20-quart capacity
1-15minute timer for continuous or timed operation
Powerful 3/4 HP motor
115v/60/1, 14amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
20-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
3-speed
3/4HP continuous
14 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 46-155
Hub: 106-357
Weight:
Net: 225lbs (102kg)
Ship: 249lbs (113kg)
Dimensions:
Width: 15'' (380mm)
Depth: 22'' (560mm)
Height: 32'' (815mm)
Shipping:
Width: 22'' (560mm)
Depth: 22'' (560mm)
Height: 38'' (965mm)
Thunderbird
30 Quart Thunderbird Planetary Mixer ARM-30
$3,600.00
$4,140.00
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
30-quart capacity
1-15minute timer for continuous or timed operation
Powerful 1 HP motor
115v/60/1, 20amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
30-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
3-speed
1HP continuous
20 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 40-150
Hub: 105-338
Weight:
Net: 396lbs (180kg)
Ship: 467lbs (212kg)
Dimensions:
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)
Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)
Thunderbird
40 Quart Thunderbird Planetary Mixer ARM-40
$4,875.00
$5,606.25
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
40-quart capacity
1-15minute timer for continuous or timed operation
Powerful 1.5 HP motor
115v/60/1, 30amps (220v/60/1 and 220v/50/1 available at additional cost)
3-Speed gear box
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
40-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
3-speed
1.5HP continuous
30 amps
Electrical:
115/60/1
220v/60/1 and 220v/50/1 available
Speed Range:
Beater: 46-150
Hub: 105-338
Weight:
Net: 415lbs (189kg)
Ship: 490lbs (223kg)
Dimensions:
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm)
Shipping:
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm)
Thunderbird
60 Quart Thunderbird Planetary Mixer ARM-60- 3 speed
$11,000.00
$12,650.00
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
60-quart capacity
1-99 minute timer for continuous or timed operation
Powerful 4 Hp motor
220x/60/1
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
60-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
3-speed
4Hp continuous
50 amps
Electrical:
220/60/1
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1018lbs (462kg)
Ship: 1180lbs (536kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 61.8'' (1569mm)
Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)
Thunderbird
60 Quart 6 Speed Thunderbird Planetary Mixer ARM-60- 6 speed
$11,000.00
$12,650.00
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.Features
60-quart capacity
1-99 minute timer for continuous or timed operation
Powerful 4 Hp motor
220v/60/3 & 50amps
6-Speed (3 speed gear box with two speed motor)
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
60-quart s/steel bowl　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
6-speed (3 speed gear box with 2 speed motor)
4Hp continuous
50 amps
Electrical:
220/60/3 or 220/60/1
440v/60/3 or 440v/50/3
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1018lbs (462kg)
Ship: 1180lbs (536kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 61.8'' (1569mm)
Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)
Thunderbird

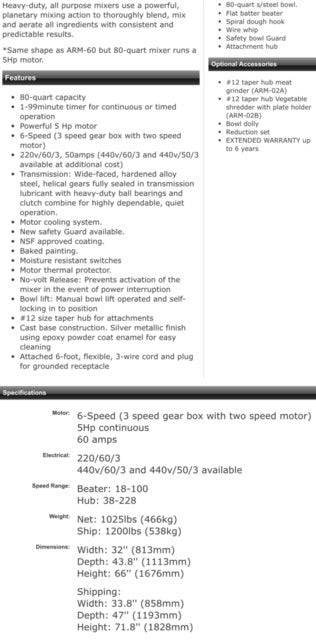

80 Quart Thunderbird Planetary Mixer ARM-80
$13,449.00
$15,466.35
DesignHeavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.*Same shape as ARM-60 but 80-quart mixer runs a 5Hp motor.Features
80-quart capacity
1-99minute timer for continuous or timed operation
Powerful 5 Hp motor
6-Speed (3 speed gear box with two speed motor)
220v/60/3, 50amps
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Manual bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories
80-quart s/steel bowl.　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
SpecificationsMotor:
6-Speed (3 speed gear box with two speed motor)
5Hp continuous
60 amps
Electrical:
220/60/3
Speed Range:
Beater: 18-100
Hub: 38-228
Weight:
Net: 1025lbs (466kg)
Ship: 1200lbs (538kg)
Dimensions:
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 66'' (1676mm)
Shipping:
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm)
Thunderbird
Thunderbird Bowl Lifter / Tilter
$20,000.00
$23,000.00
Dimension 51"(W) x 45 "(L) x 90 "(H)Power input 220V/60Hz/1Phase
Weight: 650kgs (1430lbs)
Thunderbird
140 Quart Thunderbird Planetary Mixer ARM-140
$28,000.00
$32,200.00
The Standard warranty is 180 days for labor and 500 days for parts. There is an option to extend the labor warranty for up to and additional 2 years and the parts warranty for up to an additional 6 years. The extended warranty must be purchased before your order ships. If you would like to extend your warranty, please call us and let us quote the price for the extended warranty.
Thunderbird Planetary Mixer ARM-140
Design:
Heavy-duty, all purpose mixer uses a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.
Features:
140-quart capacity
1-99 minute timer for continuous or timed operation
Powerful 6 Hp motor
220v/60/3
Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
Motor cooling system.
New safety Guard available.
NSF approved coating.
Baked painting.
Moisture resistant switches
Motor thermal protector.
No-volt Release: Prevents activation of the mixer in the event of power interruption
Bowl lift: Electric bowl lift operated and self-locking in to position
#12 size taper hub for attachments
Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle
Standard Accessories:
140-quart s/s bowl.　
Flat batter beater
Spiral dough hook
Wire whip
Safety bowl Guard
Attachment hub
Optional Accessories:
#12 taper hub meat grinder (ARM-02A)
#12 taper hub Vegetable shredder with plate holder (ARM-02B)
Bowl dolly
Reduction set
EXTENDED WARRANTY up to 6 years
Specifications:
Motor:
6Hp Continuous
Electrical:
220V / 60Hz / 3-Phase
Speeds:
87, 149, 204 - 346 RPM
Weight:
Net: 2000 lbs
Dimensions:
Width: 34''
Length: 48"
Height: 68''
