Design

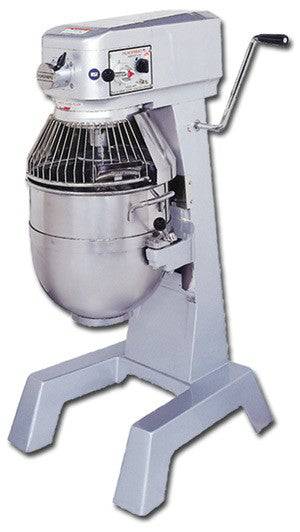

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

• 30-quart capacity
• 1-15minute timer for continuous or timed operation
• Powerful 1 HP motor
• 115v/60/1, 20amps (220v/60/1 and 220v/50/1 available at additional cost)
• 3-Speed gear box
• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
• Motor cooling system.
• New safety Guard available.
• NSF approved coating.
• Baked painting.
• Moisture resistant switches
• Motor thermal protector.
• No-volt Release: Prevents activation of the mixer in the event of power interruption
• Bowl lift: Manual bowl lift operated and self-locking in to position
• #12 size taper hub for attachments
• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
• Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

Standard Accessories

• 30-quart s/steel bowl　
• Flat batter beater
• Spiral dough hook
• Wire whip
• Safety bowl Guard
• Attachment hub

Specifications

Motor:

• 3-speed
• 1HP continuous
• 20 amps

Electrical:

• 115/60/1
• 220v/60/1 and 220v/50/1 available

Speed Range:

• Beater: 40-150
• Hub: 105-338

Weight:

• Net: 396lbs (180kg)
• Ship: 467lbs (212kg)

Dimensions:

• Width: 25'' (635mm)
• Depth: 25'' (560mm)
• Height: 46'' (1168mm)

Shipping:

• Width: 28'' (711mm)
• Depth: 28'' (711mm)
• Height: 52'' (1320mm)
