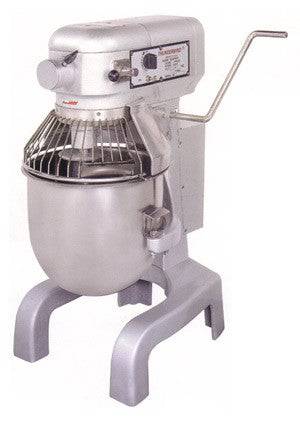

20 Quart Thunderbird Planetary Mixer ARM-02

20 Quart Thunderbird Planetary Mixer ARM-02
Save 7% Save 7%
$3,231.80
$3,231.80 - $3,231.80
$3,231.80
$3,020.38
$3,020.38 - $3,020.38
$3,020.38
Design

Heavy-duty, all purpose mixers use a powerful, planetary mixing action to thoroughly blend, mix and aerate all ingredients with consistent and predictable results.

Features

  • 20-quart capacity
  • 1-15minute timer for continuous or timed operation
  • Powerful 3/4 HP motor
  • 115v/60/1, 14amps (220v/60/1 and 220v/50/1 available at additional cost)
  • 3-Speed gear box
  • Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.
  • Motor cooling system.
  • New safety Guard available.
  • NSF approved coating.
  • Baked painting.
  • Moisture resistant switches
  • Motor thermal protector.
  • No-volt Release: Prevents activation of the mixer in the event of power interruption
  • Bowl lift: Manual bowl lift operated and self-locking in to position
  • #12 size taper hub for attachments
  • Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning
  • Attached 6-foot, flexible, 3-wire cord and plug for grounded receptacle

Standard Accessories

  • 20-quart s/steel bowl　
  • Flat batter beater
  • Spiral dough hook
  • Wire whip
  • Safety bowl Guard
  • Attachment hub

Specifications

Motor:

  • 3-speed
  • 3/4HP continuous
  • 14 amps

Electrical:

  • 115/60/1
  • 220v/60/1 and 220v/50/1 available

Speed Range:

  • Beater: 46-155
  • Hub: 106-357

Weight:

  • Net: 225lbs (102kg)
  • Ship: 249lbs (113kg)

Dimensions:

  • Width: 15'' (380mm)
  • Depth: 22'' (560mm)
  • Height: 32'' (815mm)

Shipping:

  • Width: 22'' (560mm)
  • Depth: 22'' (560mm)
  • Height: 38'' (965mm)
