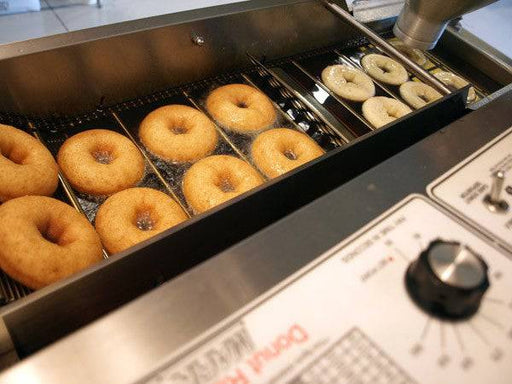

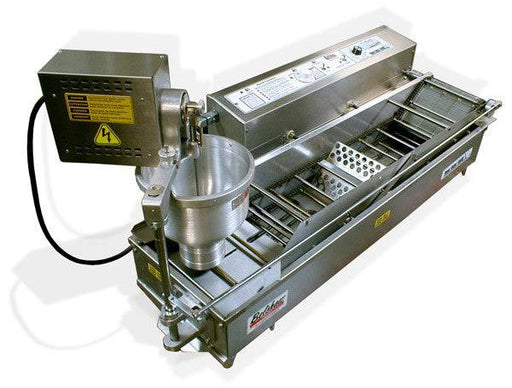

AUTOMATED DONUT MAKER FOR STANDARD SIZE DONUTS. CAPACITY 56 DOZEN/HOUR, ELECTRIC. An extended length donut maker that produces high quality, well formed cake donuts right out of the box, and makes excellent raised donuts with a few accessories. Capacity is approximately 56 dozen per hour. With a mini donut conversion kit, you can make both full size and mini donuts. The Mark V is compatible with the Insider Ventless Cabinet. All electric donut machine, capacity approximately 56 dozen standard size donuts per hour Deposits 2 standard donuts per conveyor row. A half-speed switch cuts output to 1 per row Makes consistent, well rounded cake donuts with synchronized cake donut depositor Makes excellent yeast raised donuts with the addition of optional Feed Table, Trays, and Cloths (see accessories) Dial with generous range for adjusting size of donut Makes mini donuts with optional mini donut hopper and plunger, which will deposit 4 minis per row. (Part # MK-1502-1, see accessories). Mini donut capacity will be approximately 109 dozen/hourSpeed is adjustable by dial on control panel Outfeed belt dispenses donuts into collection device such as Roto-Cooler Heavy duty elements which tilt upward when cleaning High temperature shut-down switch Hopper, plunger, conveyor, and kettle are all removable for easy cleaning 1-9/16 inch Plain Plunger for Ring donuts Single and 3 phase voltages available for all countries Standard North America models certified to UL, NSF and CSA

2 options available in Variants for the; Mark II or the Mark V/ Mark VI Belshaw Fryer Drain Valve for the Supporting Table for the Donut Robot, The EZMelt Filter, and Rack Loader or Roto-Cooler. All Donut Robots except gas models have a short drain with a heavy duty metal cap attached to it, to close it off. This Drain and Valve can be attached to the fryer, instead of the threaded cap. To use the drain and valve, you will need: A hole in the table that holds your fryer to allow the drain and valve to extend through it, enough room under the fryer for the Drain and Valve. The Drain and Valve extends 18" (46cm) below the fryer kettle. If you have this room, it will save A LOT of time and trouble emptying shortening. Instead of siphoning, just let the drain do the work. If you use the Drain and Valve when filtering shortening, you will need a filtration system to remove debris from the shortening. You can use a Belshaw EZMelt 18 or any other effective method. If you have room for the Drain and Valve, it will save A LOT of time and trouble emptying shortening. If you do not have this room under the fryer, the drain and valve will probably not help you, and you should consider the Filter Flo siphon (above) instead. The drain cap that comes standard is NOT designed to screw on and off when you empty shortening. Part # MKVI-0546

4-BOWL, WATER-WARMED ICER FOR DONUTS AND OTHER PRODUCTS Compatible with all fryers and donut systems Icing table with two 13-inch stainless steel icing bowls Bowls are gently heated by warmed water. The use of moist heat enables icings to stay in condition for longer periods. Compatible with all Belshaw Adamatic donut systems. 120V and 208-240V models available

THE BEST FILTRATION SYSTEM FOR 618, 718LCG-LFG, DONUT ROBOT MARK 2, 2GP, 5, 5GP. WARMS, FILTERS, REFILLS ON DEMAND. Compatible with 618L, 718LCG and 718LFG fryers, Donut Robot ® Mark II, and Donut Robot ® Mark V. The EZMelt filtration system is the only filtration system recommended if you use Trans Fat-free shortening! The EZMelt18 is a recycling filter that heats shortening in the tank, with these benefits: If Zero Trans Fat shortenings are used, they gradually become thicker at normal bakery temperatures. This can lead to pump blockages and failures with standard filters. Using the heated EZ Melt overcomes this problem. Pumping reheated shortening through a fixed connection to the fryer is faster and safer than any other method, such as dropping in shortening blocks. The EZMelt does this using a refill hose (optional) which attaches directly to a Belshaw fryer. Standard features Compatible with 618L, 718LCG and 718LFG fryers, Donut Robot ® Mark II, and Donut Robot ® Mark V. Can be used with any standard donut shortening including Zero Trans Fat shortening Heating element with factory set thermostat to 225 °F/107 °C. Element tilts up for easy tank cleaning. Tank itself is readily removeable. Long-life synthetic filter screen that needs only annual replacement under normal operating conditions. Heavy duty pump & motor for pumping shortening to the fryer on demand Heavy duty, moisture repellent foot switch for activating pump Cube cutter for fast melting of solid shortening blocks up to 50lbs (22.7kg) Hand held rinse hose with heat resistant handle Optional Refill Hose - allows regular topping up of fryer through a fixed connection to the fryer. The refill hose can be left in place on a Belshaw fryer at all times allowing frequent topping up of shortening level (purchased separately, see accessories) High-temperature limit switch 120V or 240V, 50 or 60 Hz, 1-Phase Certified by ETL to NSF Std 4, CSA C22.2, and UL 1889

RACK LOADER Simple, efficient method of collecting donuts from Donut Robot® fryers onto glazing screens. The Roto-Cooler looks better, the Rack Loader is more efficient! The Rack Loader is compatible with Donut Robot® Mark II, Mark II Gas, and Mark V and Mark VI. The Rack Loader is all about productivity and speed. If you need to glaze or ice donuts, or if you want to put the donuts into a baking rack temporarily, the Rack Loader is the helper that you need.  The Rack Loader stores about 10 or more screens in a stack. As one screen fills up, remove it - the next screen is underneath and ready to take its place. Each screen holds 24 donuts. Screens are 17" x 25" and fit into a standard baking rack.

The Belshaw Feed Table, Proofing Trays and Proofing Cloths produce high quality yeast-raised donuts on a standard Mark VI donut system. Take one proofing cloth and one proofing tray from your stock. You should have at least 24-48 trays depending on your daily production. Place the proofing cloth on top of the proofing tray. Place rolled and cut donuts on the proofing cloth, between the lines. Repeat the process several times. Allow donuts to rise. Insert tray, cloth and donuts into a proofer to speed up the process. After the donuts have risen, carry each proofing tray, proofing cloth and the donuts (together) to the Feed Table. Place the proofing cloths and donuts on the feed table with the rod in front of one hook on each side of the Feed Table's stainless steel chain. Pull out each Proofing Tray and store it for the next use. T he Feed Table advances in time with the fryer and drops the proofed donuts automatically between the bars of the fryer conveyor. The Proofing Cloths are ejected below the Feed Table, ready for re-use

Proofing cloths for Mark ll or Mark V System. Belshaw FT100-0532 Proofing Cloth Trays, 1/2" Perforations, For Mark ll or Mark V. 24 to 36 is usually recommended based upon the size of operation. Used in conjunction with the FT42-0052 proofing trays and feed table. How it works: Place rolled and cut donuts on the proofing cloth, between the lines Repeat the process several times Allow donuts to rise. Insert tray, cloth and donuts into a proofer to speed up the process. After the donuts have risen, carry each proofing tray, proofing cloth and the donuts (together) to the Feed Table. Place the proofing cloths and donuts on the feed table with the rod in front of one hook on each side of the Feed Table's stainless steel chain. Pull out each Proofing Tray and store it for the next use. The Feed Table advances in time with the fryer and drops the proofed donuts automatically between the bars of the fryer conveyor. The Proofing Cloths are ejected below the Feed Table, ready for re-use. This process produces consistent high quality yeast raised donuts

STANDARD GLAZER WITH A HAND HELD GLAZE APPLICATOR Compatible with 17 x 25 inch glaze screens, for all 618L, 718L, and all Donut Robots Belshaw-Adamatic's HG18C Glazer allows fast, uniform glazing of donuts, cinnamon rolls, cakes and other baked goods. It conveniently glazes one full screen at a time with little or no wasted glaze. It is compatible with 17 x 25 inch glaze screens. Glaze is dispensed from the hand held glaze applicator in a curtain about 1/8 inch thick over the whole screen of donuts A drain tray (HG18EZ-1002) provides additional flexibility and convenience. All glazer models include moveable casters and require little space. Stainless steel construction and sound design facilitate cleaning and provide a durable product that will stand up to years of everyday use. All Belshaw Adamatic glazers are certified NSF-2 This will include one drain tray and one glazing screen The drain tray makes glazing donuts (or other product) more convenient and flexible. After glazing one screen of donuts, place it on the drain tray for a minute or so, to avoid drips falling on the floor, baking rack or other storage. Attaches to either side of the glazer. 17 x 25 inch glazing screen holds 24 standard donuts & is Nickel plated steel

Belshaw Glazing Screen for HG 18C/ HG 18EZ - 17" x 25" Pack of 12 Screens (12) Screens are to pack on this item. The Rack Loader is placed at the outfeed end of Donut Robot® Mark II Gas, Mark VI Deep only, and collects donuts onto 17" x 25" screens. Having donuts on a screen is very useful for glazing and icing yeast-raised donuts. These stainless steel screens allow for easy use and easy cleaning after glazing, grated with enough space to properly hold your glazed products without issue. All screens are made of quality material that is durable and well constructed for long-term use in your kitchen. It is not recommended for GP models. Comes in packs of 12. Belshaw Adamatic Glazing screen for Rack Loader, 17" x 25" (Pack of 12) is perfect for your establishment

FT42 Feed Table For making yeast-raised donuts with Donut Robot ® Mark II or Mark V Standard Features Transfers donuts that have been proofed, into the Donut Robot ® fryer. Advances in sync with the Donut Robot ® fryer. Plugs into the Donut Robot Fryer, No additional outlet required. Accessories Required Requires Belshaw proofing trays and proofing cloths Proofing Trays: Belshaw #FT42-0052 24-36 recommended, dependent on capacity. Proofing Trays 24-36 recommended, dependent on capacity. Proofing Cloths 24-36 recommended, dependent on capacity. - Dimensions Overall dimensions: 52.5" W x 20" D x 11" H. Shipping dimensions 55" W x 24" D x 18" H. Shipped in padded carton Proofing Trays and Cloths shipped separately
