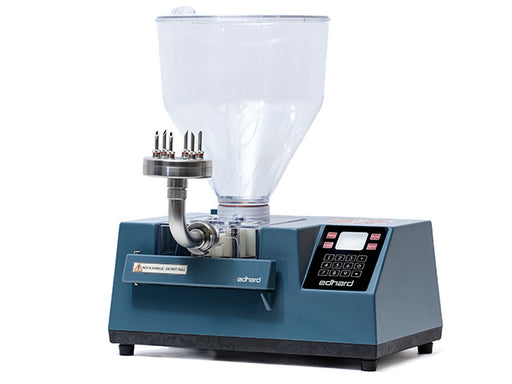

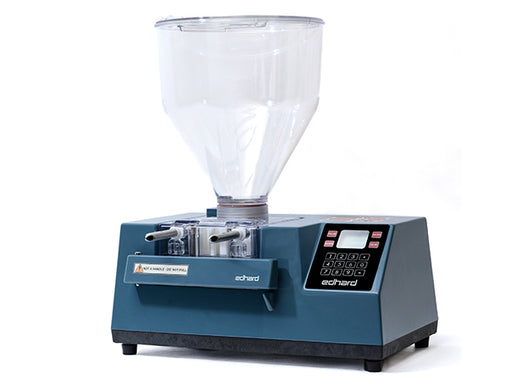

The P-Series power base (1/15HP). This base is reliable and durable, engineered for years of maintenance-free service. The exterior is designed so that merely a damp cloth is needed to keep it clean. These bases have a number of features that make them useful in a wide variety of applications. They include - Normal Cycling, Reverse, Automatic Cycling and Continuous Dispensing, which can be selected at the keypad. The F-Series filler units are suited for P-Series power base.Normal Cycle: The amount of product to be dispensed can be preset at the digital keypad. As the trip arm is pressed, the unit will cycle once to dispense the preset amount, then stop and reverse.Reverse:The reverse is needed to pull product back after a dispensing cycle is completed, which prevents dripping. Reverse can be adjusted to meet specific requirements.Automatic Cycle:This function eliminates the need to continually press the trip arm during multi-cycle applications. In ths function, the amount dispensed and waiting time can be set to suit a specific need. Automatic cycling eliminates operator fatigue and improves productivity in repetetive, long-running jobs.Continuous Dispensing:When selecting this function, the operator or a remote-triggering device, such as a photoelectric switch, determines the start and stop of the pumping action. This function is useful when a continuous stream of product is deposited on a conveyor or manually via a hose attachment.All power bases can be triggered manually by a trigger switch (standard on P, PS, PV and PT power bases), our foot switch or hose assembly (accessories), or your own photoelectric switch.

F-5003 is a 6-quart filler unit measures 9 inch diameter x 15 inch high. This single spout filler fits the Edhard P-4012 filler and includes the standard F-3094 -3 1/2" spout for filling pastries. Tip dimensions- Spout with standard donut tip, 7/16 diameter x 3-1/2 inch long (11.1mm x 89mm) The Single spout filler is for heavy viscosity fillings such as the white cream filling for donuts. The Double spout will crack when trying to dispense the dense fillings. The single spout is designed to withstand higher pressure at the dispensing head.Hopper molded in clear, FDA-approved Lexan, a brand of robust polycarbonate. Can perform a wide range of dispensing functions, from filling pastries to depositing one product onto another. A large variety of specialized spouts (sold separately) adapt the filler unit to fill donuts, éclairs, croissants and other pastries. Dispenses smooth batters and layer toppings, deposits butter and cream cheese onto bagels and rolls, and doses other semi-liquid products, quickly and efficiently.

Manufacturer: Edhard Corporation This spout comes with a 30 degree point. Use with double filler unit. The price is priced for two spouts not single. This spout comes with a 30 degree point. Model #: F-3076 Material: Stainless steel Color: Silver 30 degree point Use with double filler unit Diameter: 9/32" Length: 2-1/4" Weight: .125 lb

2 Spouts, 100% Stainless Steel

6-quart filler unit measures 9 inch diameter x 15 inch high.These filler units are molded in clear, FDA approved polycarbonate. They are available in single and double outlet configurations. The single outlet is used to deposit smooth batters, cream cheese, preserves etc. The double spout units are used to inject donuts, eclairs, cream puffs etc.Pump Configuration:Gear typeThese filler units* are molded in clear, FDA approved polycarbonate. They are available with 6-quart (5.5 liter) or 18-quart (17-liter) capacity hoppers and feature single or double outlets. F-Series filler units can perform a wide range of dispensing functions from filling pastries to depositing one product onto another. A large variety of specialized spouts adapt the filler units to fill donuts, eclairs, croissants and other pastries. They dispense smooth batters, layer toppings, deposit butter and cream cheese onto bagels and rolls and dose other semi-liquid products, quickly and efficiently. The F-Series filler units can be used with P, PS and PV-Series Power Bases

EDHARD FHP-3368 GENUINE OEM REPLACEMENT PART DISC - PRESSURE - PLASTIC - 18 Length: 15.05 in / 38.23 cm Width: 10.1 in / 25.65 cm Height: 3.6 in / 9.14 cm Weight: 2.1 lbs / 953 g

The P-Series power base (1/15HP). This base is reliable and durable, engineered for years of maintenance-free service. The exterior is designed so that merely a damp cloth is needed to keep it clean. These bases have a number of features that make them useful in a wide variety of applications. They include - Normal Cycling, Reverse, Automatic Cycling and Continuous Dispensing, which can be selected at the keypad. The F-Series filler units are suited for P-Series power base.Normal Cycle:The amount of product to be dispensed can be preset at the digital keypad. As the trip arm is pressed, the unit will cycle once to dispense the preset amount, then stop and reverse.Reverse:The reverse is needed to pull product back after a dispensing cycle is completed, which prevents dripping. Reverse can be adjusted to meet specific requirements.Automatic Cycle:This function eliminates the need to continually press the trip arm during multi-cycle applications. In ths function, the amount dispensed and waiting time can be set to suit a specific need. Automatic cycling eliminates operator fatigue and improves productivity in repetetive, long-running jobs.Continuous Dispensing:When selecting this function, the operator or a remote-triggering device, such as a photoelectric switch, determines the start and stop of the pumping action. This function is useful when a continuous stream of product is deposited on a conveyor or manually via a hose attachment.All power bases can be triggered manually by a trigger switch (standard on P, PS, PV and PT power bases), our foot switch or hose assembly (accessories), or your own photoelectric switch. Edhard's Power Base is a cream-colored unit that houses electronics and a motor. It engages the filler unit and makes it dispense your food product. The keypad controls the amount of product dispensed, and the cycle type. The P-Series unit has enough power to dispense batters, cottage cheese, creams, custard, jelly, ketchup, mustard, pudding, and yogurt, stiff creams, chocolate and nougat.P-Series Power Base Reliable and Durable Has enough Power to Dispense batters to nougat fillings Reverse Pull Back Prevents Dripping After You Are Done Filling Automatic Cycle Option Continuous Dispensing Perfect for High Volume Donut or Bakery's Model #: P-4012
