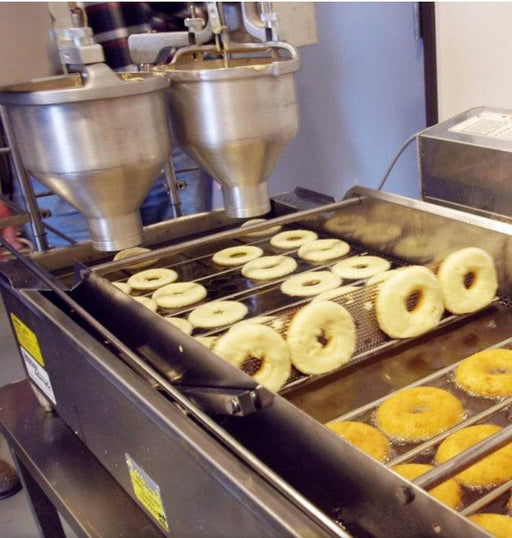

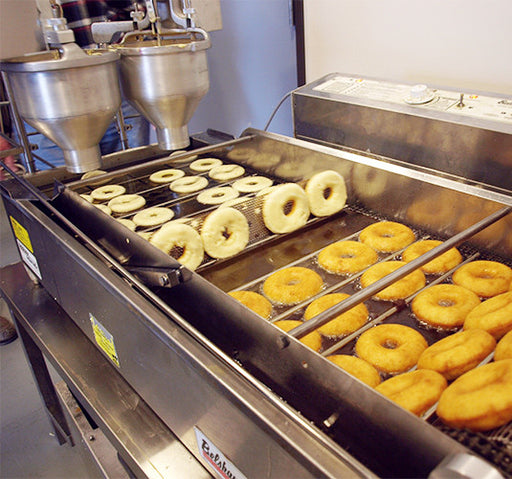

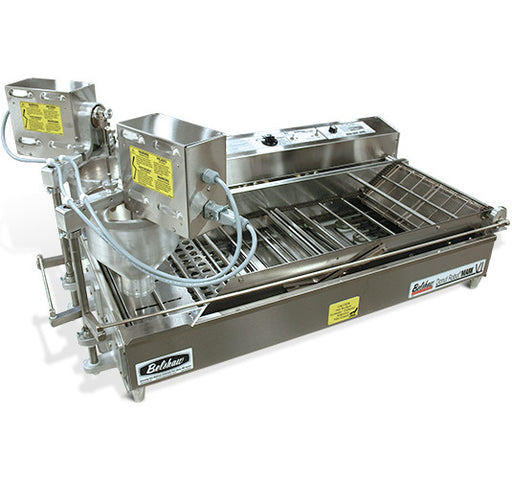

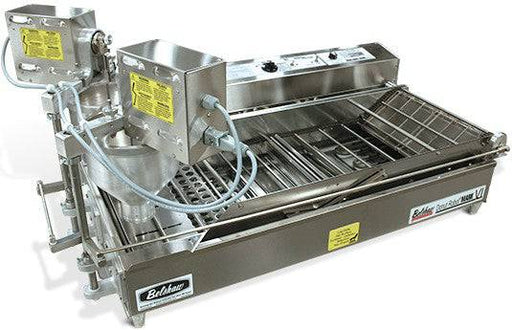

Dual Automatic Depositor Kit for Mark VI and Mark VI (Deep) (5 options in Variants available)
Belshaw Adamatic Dual Automatic Depositor Kit for Mark VI and Mark VI (Deep) (5 options in Variants available) $8,650.00
Description: The Dual Depositor Kit can be installed on the Mark VI fryer (or Mark VI 'Deep' fryer) at the time of manufacture, or can be retrofitted to existing Mark VI fryers. The Dual Depositor Kit automatically deposits 4 cake donuts in each conveyor row of the Mark VI fryer. It is a labor-saving alternative to using a Belshaw Type F depositor and produces well-formed, high quality cake donuts. The operator has only to fill the hoppers with batter, and the depositors do the rest automatically. The Dual Depositor Kit makes standard size ring donuts only. You cannot make mini donuts using the kit. Production Capacity: up to 112 dozen/hr • Donut Robot ® Mark VI fryer with dual depositor: 112 dozen cake donuts per hour. • Donut Robot ® Mark VI 'Deep' fryer with dual depositor: 91 dozen cake donuts per hour (because Flight Bars are spaced further apart) Production capacity is estimated at 95-second frying time. Actual production rate will vary depending on size and composition of donuts, frying time, frying temperature and percentage of capacity used. What is Included •(2) Donut Robot ® depositors. Each depositor is equipped with a hopper* and 1-9/16" plunger. This plunger can normally produce ring donuts up to 3-1/2" average diameter, and 1-3/4 oz. average weight. •2 depositor mounting systems • New motor, compatible with dual depositor system • All necessary hardware such as nuts, bolts and washers •Template for installing retrofit dual depositor kit. (for Retrofits only) * Note: Hopper is not compatible with standard Donut Robot hoppers Electrical The Dual Depositor system connects directly to the Mark VI fryer and does not require any external power source. For retrofits, an experienced electrician or equipment technician may be needed to replace the fryer motor inside the control panel of the machine. Ordering information Order the Dual Depositor kit from your Belshaw distributor using one of these part numbers • Part Number: MKVI-1300. For pre-installation on new Mark VI fryer •Each carton 16"x16"x22", approx 35 lbs (41x41x56 cm, 16 kg)
Belshaw Type F Cake Donut Depositor with hopper
Donut-Equipment.com Belshaw Type F Cake Donut Depositor with hopper $5,431.00
Belshaw Adamatic's Type F depositors operate with the same accuracy and smoothness as Type B depositors, but use an electric motor and trigger handle to deposit cake donuts. The faster stroke rate and easier operation of the Type F reduces frying time variability between the first and last deposits, especially with large fryers. The hand trigger is physically easier on the operator than the Type B's rotary crank mechanism, and donuts can be accurately placed in a fryer with little training or practice. Deposits approximately 115 cake donuts per minute when the trigger is pressed continuously. An adjustment dial allows a wide range of deposit sizesHopper capacity is 15 lbs (7 kg). Choose from the depositor accessories for: Plungers - for ring donuts, sticks, old fashions, crullers, krinkles and more. Cylinders - any plunger used must be matched by a cylinder of the same size. This cylinder is inserted into the bottom of the hopper. One cylinder can be used with several plungers, as long as the plungers are all the same size as the cylinder. Column Mount or Wall Mount - Type F is compatible with most floor-standing fryers using either a column mount attached to the fryer or a secure wall mount. The column mount is more convenient and more common and will fit Belshaw Adamatic fryers and some other brands. Consult with other brand manufacturers to find out how to combine with a Type F. If a column mount is not possible, a well secured wall mount is a good alternative. The Bracket Arm Height Adjuster is another useful option for easier, more convenient height adjustments. (See depositor accessories)
HG18EZ Glazer with Drain Tray and EZ Lift Applicator with one 17
Donut-Equipment.com HG18EZ Glazer with Drain Tray and EZ Lift Applicator with one 17" x 25" Glazing Screen $4,641.00
EZLIFT GLAZER WITH GLAZE APPLICATOR SUPPORTED ON RAILS Compatible with 17 x 25 inch glaze screens, for 618L, 718L, and all Donut Robots Belshaw-Adamatic's HG18EZ Glazer allows fast, uniform glazing of donuts, cinnamon rolls, cakes and other baked goods. It conveniently glazes one full screen at a time with little or no wasted glaze. It is compatible with 17 x 25 inch glaze screens. Belshaw's Easylift hand glazers (HGEZ models) eliminate the heavy-lifting associated with standard hand glazers. Rather than being carried by the operator, the glaze applicator slides along rails as it glazes. This design provides even glaze coverage and more attractive looking donuts, with less physical requirements from the operator. A drain tray (HG18EZ-1002) provides additional flexibility and convenience. All glazer models include moveable casters and require little space. Stainless steel construction and sound design facilitate cleaning and provide a durable product that will stand up to years of everyday use. All Belshaw Adamatic glazers are certified NSF-2 This will include one drain tray and one glazing screen The drain tray makes glazing donuts (or other product) more convenient and flexible. After glazing one screen of donuts, place it on the drain tray for a minute or so, to avoid drips falling on the floor, baking rack or other storage. Attaches to either side of the glazer. 17 x 25 inch glazing screen holds 24 standard donuts & is Nickel plated steel
Belshaw Proofing Cloth with Rod for Mark VI (ea)
Belshaw Adamatic Belshaw Proofing Cloth with Rod for Mark VI (ea) $65.00
Proofing cloths for Mark VI System. Belshaw Ft6-0005 Proofing Cloth Trays, 1/2" Perforations, For Mark VI. 24 to 36 is usually recommended based upon the size of operation. Used in conjunction with the FT6-005 proofing trays and feed table. How it works: Place 24 rolled and cut donuts on the proofing cloth, between the lines Repeat the process several times Allow donuts to rise. Insert tray, cloth and donuts into a proofer to speed up the process. After the donuts have risen, carry each proofing tray, proofing cloth and the donuts (together) to the Feed Table. Place the proofing cloths and donuts on the feed table with the rod in front of one hook on each side of the Feed Table's stainless steel chain. Pull out each Proofing Tray and store it for the next use. The Feed Table advances in time with the fryer and drops the proofed donuts automatically between the bars of the fryer conveyor. The Proofing Cloths are ejected below the Feed Table, ready for re-use. This process produces consistent high quality yeast raised donuts See the Mark VI system video to find out more about the Feed Table, Proofing Trays, and Proofing Cloths.
Belshaw Donut Robot® Mark VI Standard  (2 variables in Variants)
Belshaw Adamatic Belshaw Donut Robot® Mark VI Standard (2 variables in Variants) $28,574.00
AUTOMATIC DONUT MACHINE DESIGNED AS PART OF A MARK VI DONUT SYSTEM. CAPACITY 112 DOZEN/HOUR The Donut Robot ® Mark VI is part of the Mark VI donut system, for high quality cake and yeast-raised donuts. The EZMelt and Feed Table accessories are essential to running the Mark VI system. Other accessories, such as proofer, glazer, and icer, are optional. Now with 2 choices for making cake donuts - Type F electric depositor, or the new Dual Automatic system depositing 4 donuts per row. Belshaw Adamatic's Donut Robot ® Mark VI Production System makes donut production faster and easier than open kettle frying. Less training is required to work the system efficiently, and more consistent quality can be achieved. The automatic fryer can reduce shortening consumption by as much as 50% compared to standard fryers. It provides identical frying conditions for each donut, without an operator needing to stand over the fryer to insert, turn and lift donuts out manually. Both cake and yeast-raised donuts can equal or surpass donuts made by standard kettle fryers. Mark VI fryers are the same length as the Donut Robot Mark V, and two (2) times the width. Therefore the capacity is double that of the Mark V. On a Mark VI the flight bars are spaced 3- 3/4" (95mm) from center to center allowing donuts up to 3 3/4" width. On a Mark VI the flight bars are 4- 1/2" (114mm) from center to center, to accommodate larger donut varieties in addition to the smaller varieties. Drain Valve is purchased separately on this model Mark Vl is certified ETL to UL, CSA and NSF standard Mark Vl with/ Type F depositor - 1060 per hour Mark VI with/dual automatic depositor- 1060 per hour Mark VI Deep- 860 per hour Cake donuts: Makes a full variety of cake donuts using either: Type F depositor, electric, operated manually, capacity approximately 112 dozen donuts per hour, at 95 seconds frying time, makes crullers, krinkles, sticks, and every kind of cake donut using a variety of plungers. Dual automatic Donut Robot ® Depositor, same capacity as Type F. For Ring donuts only, but saves a lot of labor and effort by depositing 4 donuts automatically per row, using the same system as the Donut Robot ® Mark II. Yeast-Raised donuts: makes excellent yeast-raised donuts with the addition of optional Feed Table, Trays, and Cloths, capacity approximately 96 dozen donuts per hour, at 110 seconds frying time. Suitable for any yeast-raised product that will fit between the conveyor bars of the fryer. That means Rings, Bars, Berliners, even Twists and unusual shapes. All electric donut machine, with automatic conveyor, turner, and outfeed belt Speed is adjustable by dial on control panel Heavy duty elements, with high temperature shut-down switch Conveyor and kettle are all removable for easy cleaning 3 phase power supply required, with voltages available for all countries

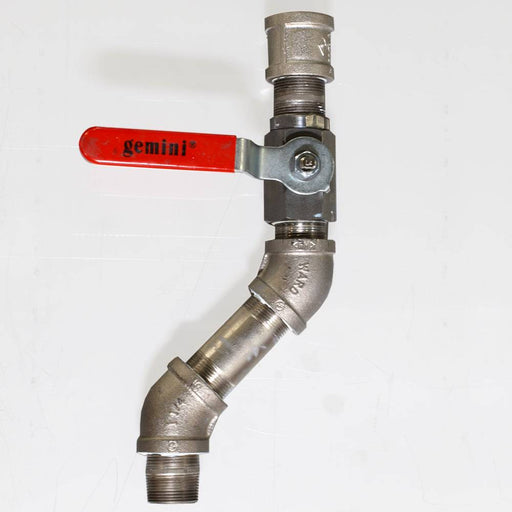

Belshaw Donut Robot Mark II, Mark V, and Mark VI Fryer Drain Valve for Support Table (2 Variables in Variants)
Belshaw Adamatic Belshaw Donut Robot Mark II, Mark V, and Mark VI Fryer Drain Valve for Support Table (2 Variables in Variants) $426.00
2 options available in Variants for the; Mark II or the Mark V/ Mark VI Belshaw Fryer Drain Valve for the Supporting Table for the Donut Robot, The EZMelt Filter, and Rack Loader or Roto-Cooler. All Donut Robots except gas models have a short drain with a heavy duty metal cap attached to it, to close it off. This Drain and Valve can be attached to the fryer, instead of the threaded cap. To use the drain and valve, you will need: A hole in the table that holds your fryer to allow the drain and valve to extend through it, enough room under the fryer for the Drain and Valve. The Drain and Valve extends 18" (46cm) below the fryer kettle. If you have this room, it will save A LOT of time and trouble emptying shortening. Instead of siphoning, just let the drain do the work. If you use the Drain and Valve when filtering shortening, you will need a filtration system to remove debris from the shortening. You can use a Belshaw EZMelt 18 or any other effective method. If you have room for the Drain and Valve, it will save A LOT of time and trouble emptying shortening. If you do not have this room under the fryer, the drain and valve will probably not help you, and you should consider the Filter Flo siphon (above) instead. The drain cap that comes standard is NOT designed to screw on and off when you empty shortening. Part # MKVI-0546
ezmelt-34-includes-rinse-and-fill-hoses
Belshaw Adamatic ezmelt-34-includes-rinse-and-fill-hoses $5,752.00
THE BEST FILTRATION SYSTEM FOR; 734CG, 734FG, AND DONUT ROBOT MARK VI. (Standard or Deep models MELTS, FILTERS AND PUMPS BACK ON DEMAND. Compatible with 734CG and 734FG fryers, and Donut Robot ® Mark VI. The EZMelt filtration system is the only filtration system recommended if you use Trans Fat-free shortening. The EZMelt34 is a recycling filter that heats shortening in the tank, with these benefits:If Zero Trans Fat shortenings are used, they gradually become thicker at normal bakery temperatures. This can lead to pump blockages and failures with standard filters. Using the heated EZ Melt overcomes this problem.Pumping reheated shortening through a fixed connection to the fryer is faster and safer than any other method, such as dropping in shortening blocks. The EZMelt does this using a refill hose (optional) which attaches directly to a Belshaw fryer. Standard features: Capacity 31.25 gallons (118 Liters), approximately equivalent to 225 lbs (102 kg) shortening. Compatible with Belshaw's floor model 734LFG and 734LCG fryers, and with Donut Robot ® Mark VI. For other brand fryers, check capacity and dimensions to determine compatibility.Can be used with any standard donut shortening including Zero Trans Fat shortening. Heating element with factory set thermostat to 225‚ °F/107‚ °C. Element tilts up for easy tank cleaning. Tank itself is readily removable. Long-life synthetic filter screen that needs only annual replacement under normal operating conditions.Heavy duty pump & motor for pumping shortening to the fryer on demand. Heavy duty, moisture repellent foot switch for activating pump. Cube cutter for fast melting of solid shortening blocks up to 50lbs (22.7kg)Hand held rinse hose with heat resistant handle. Optional Refill Hose - allows regular topping up of fryer through a fixed connection to the fryer. The refill hose can be left in place on a Belshaw fryer at all times allowing frequent topping up of shortening level. High-temperature limit switch. 120V or 240V, 50 or 60 Hz, 1-Phase. Certified by ETL to NSF Std 4, CSA C22.2, and UL 1889.
Belshaw Proofing Tray for Mark VI (used with Feed Table)
Belshaw Adamatic Belshaw Proofing Tray for Mark VI (used with Feed Table) $95.00

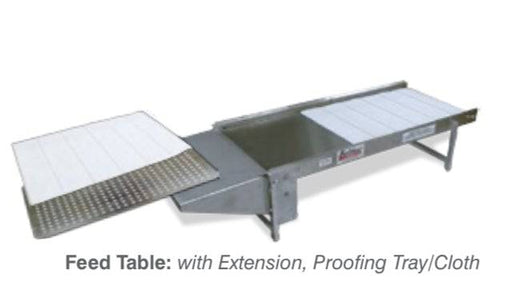

The Belshaw Feed Table, Proofing Trays and Proofing Cloths produce high quality yeast-raised donuts on a standard Mark VI donut system. Take one proofing cloth and one proofing tray from your stock. You should have at least 24-48 trays depending on your daily production. Place the proofing cloth on top of the proofing tray. Place rolled and cut donuts on the proofing cloth, between the lines. Repeat the process several times. Allow donuts to rise. Insert tray, cloth and donuts into a proofer to speed up the process. After the donuts have risen, carry each proofing tray, proofing cloth and the donuts (together) to the Feed Table. Place the proofing cloths and donuts on the feed table with the rod in front of one hook on each side of the Feed Table's stainless steel chain. Pull out each Proofing Tray and store it for the next use. The Feed Table advances in time with the fryer and drops the proofed donuts automatically between the bars of the fryer conveyor. The Proofing Cloths are ejected below the Feed Table, ready for re-use
Belshaw Mobile Support Table for FT42 Feed Table For Donut Robot Fryer
Belshaw Adamatic Belshaw Mobile Support Table for FT42 Feed Table For Donut Robot Fryer $3,100.00
The FT6-1004 is a support table for under the Belshaw FT42 Feed Table. This support table is designed to hold any Donut Robot ® Feed Table. Also has shelf storage for Feed Table Trays, Cloths and other accessories.

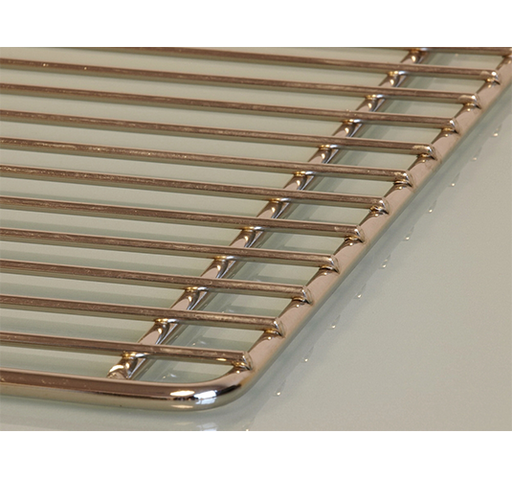

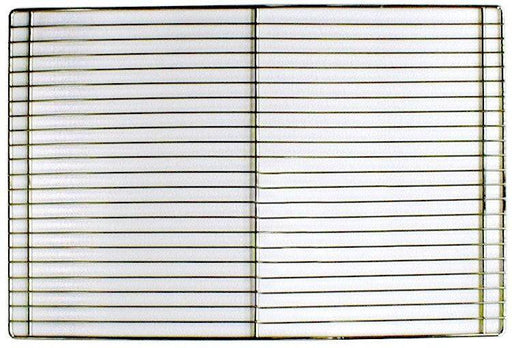

Belshaw Glazing Screen for HG 18C/ HG 18EZ - 17 Belshaw Glazing Screen for HG 18C/ HG 18EZ - 17
Belshaw Adamatic Belshaw Glazing Screen for HG 18C/ HG 18EZ - 17" x 25" Pack of 12 Screens $360.00
Belshaw Glazing Screen for HG 18C/ HG 18EZ - 17" x 25" Pack of 12 Screens (12) Screens are to pack on this item. The Rack Loader is placed at the outfeed end of Donut Robot® Mark II Gas, Mark VI Deep only, and collects donuts onto 17" x 25" screens. Having donuts on a screen is very useful for glazing and icing yeast-raised donuts. These stainless steel screens allow for easy use and easy cleaning after glazing, grated with enough space to properly hold your glazed products without issue. All screens are made of quality material that is durable and well constructed for long-term use in your kitchen. It is not recommended for GP models. Comes in packs of 12. Belshaw Adamatic Glazing screen for Rack Loader, 17" x 25" (Pack of 12) is perfect for your establishment
Belshaw Donut Robot Table Mark II, Mark V, and Mark VI Support Table
Belshaw Adamatic Belshaw Donut Robot Table Mark II, Mark V, and Mark VI Support Table $5,700.00
The Support Table is designed to safely support all Donut Robot ® fryers, Roto-Cooler (or Rack Loader), and EZMelt. It has holes and bolt holes to accept fryers and equipment underneath such as the EZMelt filter. Also has shelf storage for screens and other accessories such as the Roto-Cooler. Support Table for the Mark VI (MK6-1005) - used with the FT6-1004 Support Table for the Feed Table with pre-machined holes Designed to withstand the weight of the fryer and the weight of the cooking oil. Don't allow yourself to purchase a standard stainless worktable and take the chance of causing an accident from the table not supporting the weight of the equipment and supplies. This is made of heavy duty Stainless Steel and Square Tubing. Supports the Mark VI fryer from Belshaw , with a storage area for the EZ Melt 34 Filteration System, and the RL18 Rack Loader. The rack also provides storage area for Shortening, Glaze, Screens and assorted items. Belshaw Adamatic MK6-1005 88 5/16 x 33 3/16" x 36

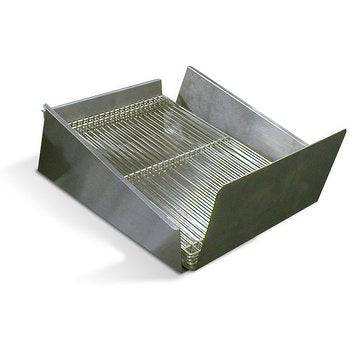

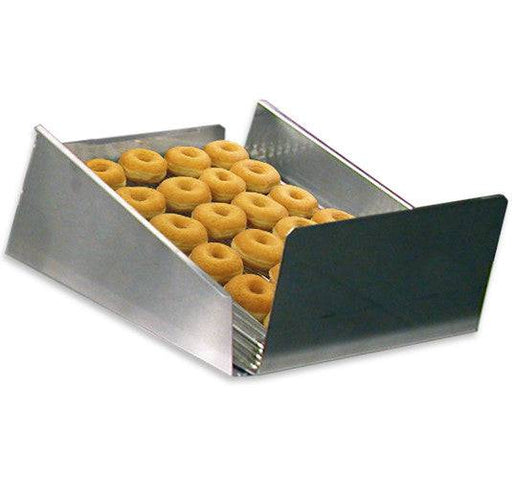

Belshaw Donut Robot Mark II, Mark V, and Mark VI Rack loader w/ extra height for gas models
Belshaw Adamatic Belshaw Donut Robot Mark II, Mark V, and Mark VI Rack loader w/ extra height for gas models $873.00
The Rack Loader is designed for the gas model Donut Robots that have more height that is needed and the Rack Loader is placed at the out feed end of Donut Robot Mark II, Mark V, and Mark VI fryers, and collects donuts onto 17' x 25' screens. Having donuts on a screen is very useful for glazing and icing yeast-raised donuts. It is not recommended for GP models. Dim: 27 1/2" L x 19" W x 10" H
