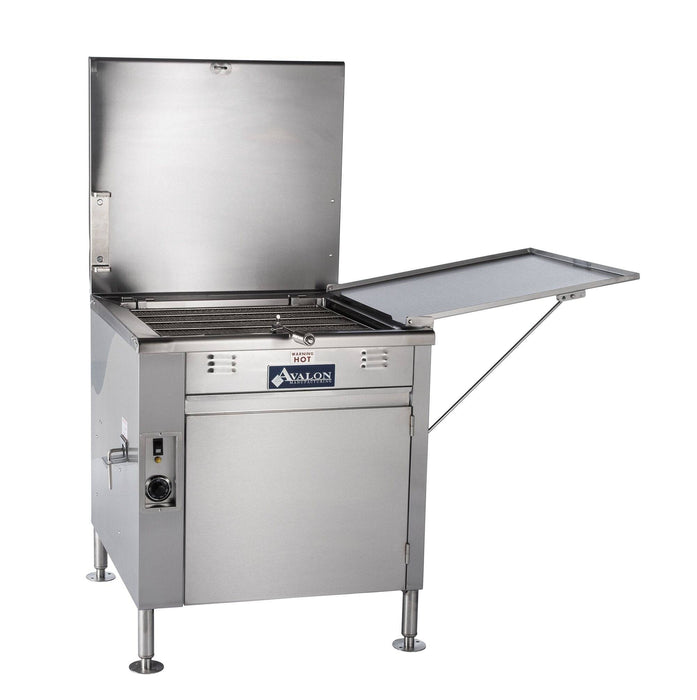

Avalon Donut Fryer (ADF20-E) is a heavy-duty fryer with a compact design allowing for maximum production with minimal space taken up. This design is an all-Stainless-Steel construction with a high backsplash and heavy-duty mounting bracket ready for your donut dropper to be added on. This compact design is ready to fit into any kitchen or mobile concession. This model comes standard with options that are a usual add-on or extra costs such as a cake screen with handles, cradle lifter, and crumb screen. This includes submerging screen (ASUB20-E) with this model, allowing for quick use. The submerge screen will help perfectly submerge your fried goods.

About Avalon

Since 1927 Avalon has been a premier U.S. manufacturer of quality donut and bakery equipment. The company is family-owned and operated with a mission to be the preferred global supplier and the highest quality, value-based equipment in the donut equipment sector.

Product Features

• •  Stainless Steel Kettle Pot
  • Cake Screen with Handles
  • Cradle Lifter
  • Crumb Screen
  •  Stainless Steel Cabinet
  •  Stainless Steel Backsplash
  •  Adjustable Drain Tray/Cover
  •  Leveling Bolt Down Legs
  •  Exterior Drain Valve Control
  •  Depositor Mounting Bracket
  •  Easy to use Protected Controls
  •  Safety High-Limit Control
  •  Cake Screen & Cradle
• Frying Area 20 inches side-to-side x 20 inches front-to-back
• 208 Volts / 50-60Hz / 1-phase   31 Amps
• Drain tray on the left side of the fryer
• A ventilation and fire suppression hood is usually required for indoor locations.
• 350 pounds shipping weight
• If a cake dropper is desired to be mounted, please check out the Belshaw type B or F to be used with the provided mount attached to the back of the fryer.

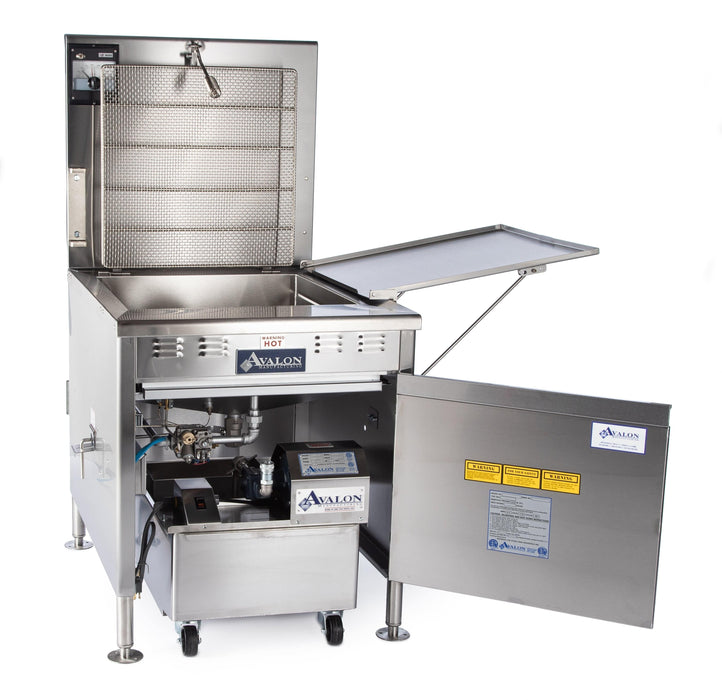

• Accessories suggested; Type B or F cake dropper and the appropriate size Shortening Filter machine for the model made by Avalon that stores under the fryer.
• Dimensions: 26"W x 28"D x 34"H (Tray Open 47"W / Top of Backsplash 60"H)
• Electrical: 208/240 Volts, 50/60HZ,  1 Phase
• Frying Area/Oil Capacity: 20"W x 20"D / 80 LBS
• Production Output: 60-75 Dozen Per Hour at 90 Second Fry Time
• Apx Shipping Weight: 350 LBS.

• Frying Area 20 inches side-to-side x 20 inches front-to-back
• 208 Volts / 50-60Hz / 1-phase   31 Amps
• This Product has a Right-Side Drain
• This Does include Submerge Screen

Disclaimer

*This item is not stocked in our warehouse stock and transit time may vary, if you need your items by a certain date, please contact us prior to placing your order. Shipping may vary.

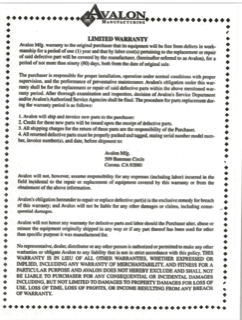

* 1-year parts and labor cost limited warranty see (attached media)

*This model does include Submerge Screen
