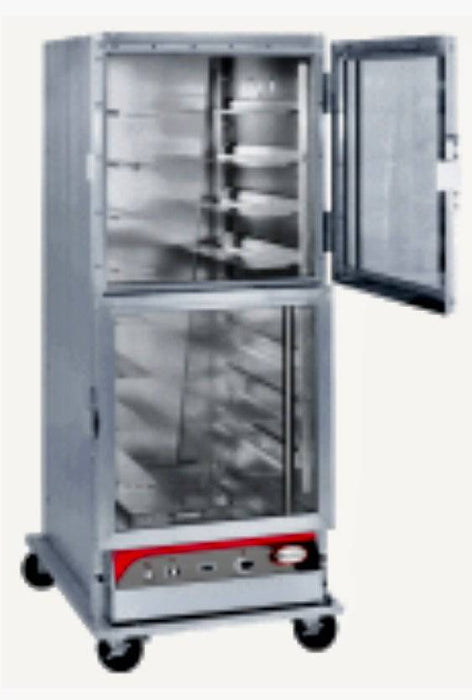

This proof box will work for 23 x 33 screens. Aluminum construction with universal extruded pan supports accommodate a variety of pans and screens. Full-length Lexan® door with heavy duty hinges, positive closing latch and perimeter gasket. Bottom mounted electrical unit with separate controls for heat and humidity. “Cast-in” humidity system prevents element burnout and potential injury from accidental contact with exposed heating element. Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of cabinet.

Mobile, full height with insulated top, back & sides.

• (2) Right Hand Hinged Door

Electrical

. 115v/60/1-ph. 1400 watts. 13 amps. 8' cord & NEMA 5-15P plug. CULus. NSF.

Construction:

• • Body: .063 aluminum
• • Door: Clear Lexan® with an extruded aluminum frame
• • Door Latch and Hinges: Patented positive action door latch with heavy-duty stainless steel hinges
• • Door Gasket: Closed cell foam
• • Base: .125 aluminum
• • Rear (Air Duct) Panel: .063 aluminum Pan Support Assembly:
• • Pan Supports: Extruded universal pan supports adjustable on 3" centers
• • Uprights: .100 aluminum slotted on 3" centers Electrical:
• • Switch: 15 Amp, lighted
• • Bottom mounted heating unit with a one (1) piece modular drop-in design blower assembly
• • Entire bottom mounted heating unit is easily removable for cleaning and maintenance
• • Air heating element rated at 1000W, 120V
• • Humidity heating element rated at 400W, 120V • 5 quart (4.7 liter) cast water reservoir
• • Lexan® water reservoir cover • Easy to operate controls feature precision thermostat, variable humidity control and dial thermometer
• • All controls are visible and operable from exterior of cabinet Casters:
• • Heavy-duty plate type casters, with 5" hard neoprene wheels; all swivel; wheel brakes on front two casters

Shipping:

• Freight Class: 85
