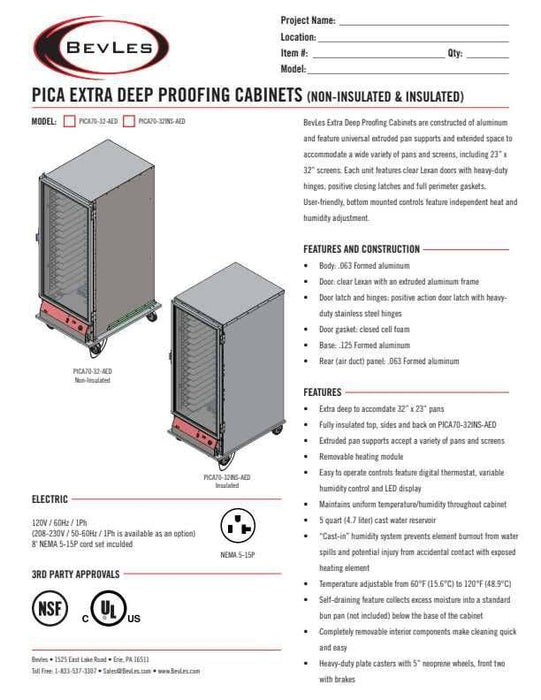

This proof box will work for 23 x 33 screens. Aluminum construction with universal extruded pan supports accommodate a variety of pans and screens. Full-length Lexan® door with heavy duty hinges, positive closing latch and perimeter gasket. Bottom mounted electrical unit with separate controls for heat and humidity. “Cast-in” humidity system prevents element burnout and potential injury from accidental contact with exposed heating element. Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of cabinet.

Mobile, full height with insulated top, back & sides.

• (1) Right Hand Hinged Door

Electrical:

(208-230V / 50-60Hz / 1Ph

Construction:

• • Body: .063 Formed aluminum
• • Door: clear Lexan with an extruded aluminum frame
• • Door latch and hinges: positive action door latch with heavy duty stainless steel hinges • Door gasket: closed cell foam
• • Base: .125 Formed aluminum
• • Rear (air duct) panel: .063 Formed aluminum
• • Extra deep to accomdate 32” x 23” pans
• • Fully insulated top, sides and back on PICA70-32INS-AED
• • Extruded pan supports accept a variety of pans and screens
• • Removable heating module PICA70-32INS-AED Insulated NEMA 5-15P
• • Easy to operate controls feature digital thermostat, variable humidity control and LED display
• • Maintains uniform temperature/humidity throughout cabinet
• • 5 quart (4.7 liter) cast water reservoir
• • “Cast-in” humidity system prevents element burnout from water spills and potential injury from accidental contact with exposed heating element
• • Temperature adjustable from 60°F (15.6°C) to 120°F (48.9°C)
• • Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of the cabinet
• • Completely removable interior components make cleaning quick and easy
• • Heavy-duty plate casters with 5” neoprene wheels, front two with brakes
