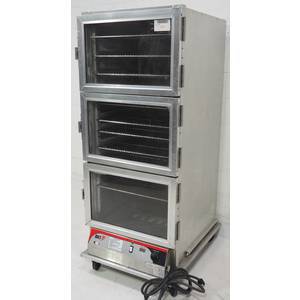

Bevles Proof-Box Model: PICA70-32-AED-1R3 (120V) Extra Deep Right Hinged 3 Door Proofing Cabinet (Non Insulated)

by Bevles
Save 7% Save 7%
Original price $4,656.61
Original price $4,656.61 - Original price $4,656.61
Original price $4,656.61
Current price $4,311.68
$4,311.68 - $4,311.68
Current price $4,311.68

Aluminum construction with universal extruded pan supports accommodate a variety of pans and screens. Full-length Lexan® door with heavy duty hinges, positive closing latch and perimeter gasket. Bottom mounted electrical unit with separate controls for heat and humidity. “Cast-in” humidity system prevents element burnout and potential injury from accidental contact with exposed heating element. Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of cabinet.

Mobile, full height with insulated top, back & sides.

* (3) Right Hand Hinged Door

  • extra deep to accommodate 23" x 32" fry screens
  • accommodates 16 (23" x 23" fry screens)

. 120v/60/1-ph. 1400 watts. 13 amps. 8' cord & NEMA 5-15P plug. CULus. NSF.

Construction:

• Body: .063 aluminum

• Door: Clear Lexan® with an extruded aluminum frame

• Door Latch and Hinges: Patented positive action door latch with heavy-duty stainless steel hinges

• Door Gasket: Closed cell foam

• Base: .125 aluminum

• Rear (Air Duct) Panel: .063 aluminum Pan Support Assembly:

• Pan Supports: Extruded universal pan supports adjustable on 3" centers

• Uprights: .100 aluminum slotted on 3" centers Electrical:

• Switch: 15 Amp, lighted

• Bottom mounted heating unit with a one (1) piece modular drop-in design blower assembly

• Entire bottom mounted heating unit is easily removable for cleaning and maintenance

• Air heating element rated at 1000W, 120V

• Humidity heating element rated at 400W, 120V • 5 quart (4.7 liter) cast water reservoir

• Lexan® water reservoir cover • Easy to operate controls feature precision thermostat, variable humidity control and dial thermometer

• All controls are visible and operable from exterior of cabinet Casters:

• Heavy-duty plate type casters, with 5" hard neoprene wheels; all swivel; wheel brakes on front two casters

Shipping:

• Freight Class: 85

BevLes Extra Deep Proofing Cabinet Mobile Full Height Non-Insulated - PICA70-32-AED-1L3

Mobile, full height, non-insulated cabinet. (3) clear Lexan® left-hand hinged split doors. Digital thermostat. 120v/60/1-ph. 1400 watts. 13 amps. 8' cord & NEMA 5-15P plug. CULus. NSF.

  • Dimensions (Inches): Width 29. Height: 71.5. Depth: 39.
  • Insulation: non-insulated
  • Interior Finish: aluminum interior
  • Exterior Finish: all aluminum exterior
  • Sections: 1 section w/1 compartment
  • Heater: bottom mounted heater
  • Slide Centers: adjustable centers on 1-1/2"
  • Full Size Hotel Pan Capacity: (32) 12" x 20" pans
  • Full Size Sheet Pan Capacity: (16) 18" x 26" pans
  • Category: Mobile Proofer Cabinet
