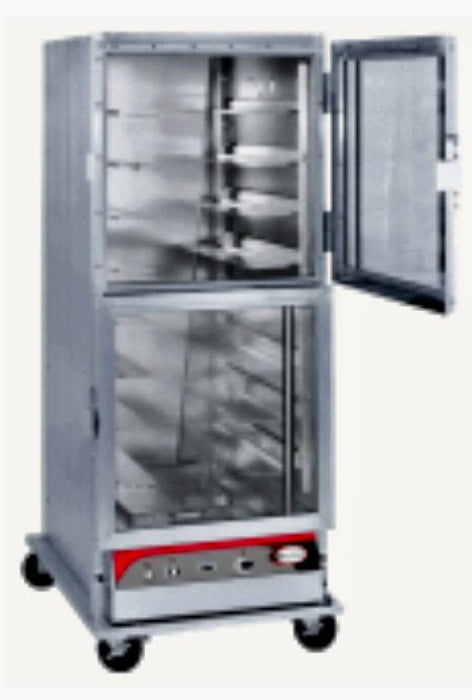

Bevles Proof-box Model: PICA70-32INS-A-4L2 Left Hinged 2 Door Proofing Cabinet- 208-230V 1 phase (Insulated)

by Bevles
Save 6% Save 6%
Original price $4,572.26
Original price $4,572.26 - Original price $4,572.26
Original price $4,572.26
Current price $4,283.57
$4,283.57 - $4,283.57
Current price $4,283.57

Aluminum construction with universal extruded pan supports accommodate a variety of pans and screens. Full-length Lexan ® door with heavy duty hinges, positive closing latch and perimeter gasket. Bottom mounted electrical unit with separate controls for heat and humidity. Cast-in humidity system prevents element burnout and potential injury from accidental contact with exposed heating element. Self-draining feature collects excess moisture into a standard bun pan (not included) below the base of cabinet.

Mobile, full height with insulated top, back & sides.

* (2) Two Left Hinged Doors (Right Hinged Photo,Photo Left Hinged Unavailable)

208-230v/50/60/1-ph. 1400 watts. 7.5/6.8 amps. Cord only. CULus. NSF.

Construction:

  • Body: .063 aluminum
  • Door: Clear Lexan ® with an extruded aluminum frame
  • Door Latch and Hinges: Patented positive action door latch with heavy-duty stainless steel hinges
  • Door Gasket: Closed cell foam
  • Base: .125 aluminum
  • Rear (Air Duct) Panel: .063 aluminum Pan Support Assembly:
  • Pan Supports: Extruded universal pan supports adjustable on 3" centers
  • Uprights: .100 aluminum slotted on 3" centers Electrical:
  • Switch: 15 Amp, lighted
  • Bottom mounted heating unit with a one (1) piece modular drop-in design blower assembly
  • Entire bottom mounted heating unit is easily removable for cleaning and maintenance
  • Air heating element rated at 1000W, 120V
  • Humidity heating element rated at 400W, 120V  5 quart (4.7 liter) cast water reservoir
  • Lexan ® water reservoir cover
  • Easy to operate controls feature precision thermostat, variable humidity control and dial thermometer
  • All controls are visible and operable from exterior of cabinet Casters:
  • Heavy-duty plate type casters, with 5" hard neoprene wheels; all swivel; wheel brakes on front two casters

Shipping:

  • Freight Class: 85
